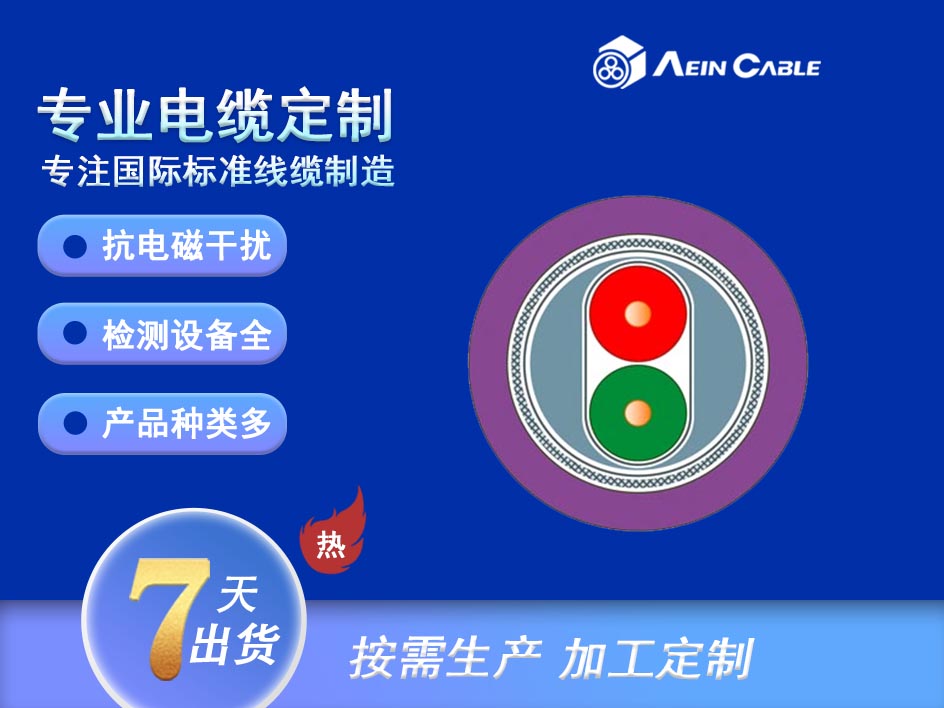

Product specifications:1X2X22AWG

Conductor material:1/0.64Solid annealed copper conductor

Conductor class: acc. to IEC 60228standard

Core insulation:PEF  OD:2.55mm

Core identification: red and green

Shield:Aluminum - plastic composite tape wrapped, tinned copper wire braided shield

Inner sheath:LSZH  OD:5.4mm

Outer sheath:LSZH  OD:8.0mm

Jacket color: PurpleRAL4005

Operating voltage:80V

Conductor resistance:Conform toIEC 60228 clstandard

Electrical data

Damping per unit length

● 9.6 kHz when / Maximum value   0.0025 dB/m
● 38.4 kHz when / Maximum value    0.004 dB/m
● 4 MHz when / Maximum value      0.022 dB/m
● 16 MHz when / Maximum value     0.042 dB/m

Wave resistance

● rating     150 Ω
● 9.6 kHz when    270 Ω
● 38.4 kHz when    185 Ω
● 3 MHz ... 20 MHz when   150 Ω

Relative symmetric tolerance

● 9.6 kHz The wave resistance of time   10 %
● 38.4 kHz The wave resistance of time  10 %
● 3 MHz ... 20 MHz The wave resistance of time 10 %

Circuit resistance per unit length / Maximum value:110 mΩ/m

Shielding resistance per unit length / Maximum value:9.5 Ω/km

Capacitance per unit length / 1 kHz when   28.5 pF/m

Minimum bending radius: Fixed 7.5 x d

Minimum bending radius: Moved 15 x d

Temperature range :-25 °C / +80 °C

Burning behavior:Self-extinguishing, consistentIEC 60332-1Standard, oil resistance meets IEC 60811-2-1(4h/70°C)
