Product introduction
-
01 Product application
Power, control and connecting cable for drive systems with frequency converter technology, for fixed laying and casually movement without tensile stress and without defined cable routing. Suitable for use in dry, humid and wet rooms. Outdoor use (only
K-version), but no laying underground.
-
02 Product characteristics
· •Low coupling resistance of cable•K-type: black outer sheath is UV resistant and elastic at low temperatures•Through the best electromagnetic compatibility shielding, the frequency converter can operate normally without external electromagnetic interference•The low capacitance of the cable makes the connecting cable between the motor and the frequency converter longer•2XSL(St)CY Compared to the version, the transmission power is increased over the same conductor cross section.
-
03 Technical certification ·Conform to RoHS standard
·Conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
· We are pleased to produce special versions, other dimensions, core and jacket colours on request.

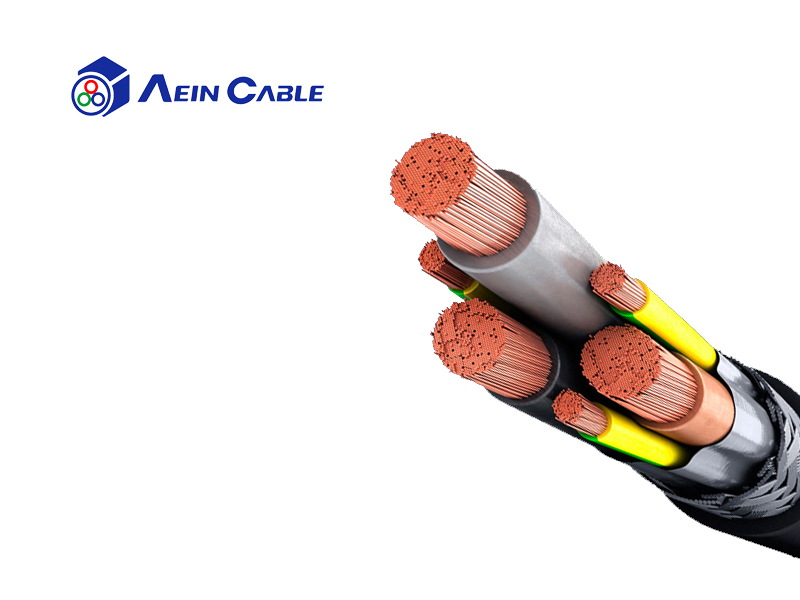

Product structure
Conductor material: bare copper wire
Conductor class: acc. to IEC 60228 cl.5 standard
Core insulation: XLPE
Core identification: acc. to DIN VDE 0293 / GNYE Colored core
Stranding: stranded in layers
Shield: alu-lamin. polyester foil, metal side outside, cover. 100%
Sheath: PVC
Sheath color: black RAL9005; Transparent (optional)
Rated voltage: Uo/U: 0.6/1kV
Test voltage: 3.5 kV
Conductor resistance: acc. to IEC 60228 cl. 5
Insulation resistance: minimum 20 MΩ x km
Minimum bending radius fixed: ≤ 12mm Ø: 5 x d; ≤ 20mm Ø: 7.5 x d; > 20mm Ø: 10 x d
Minimum bending radius moved: ≤ 12mm Ø: 10 x d; ≤ 20mm Ø: 15 x d; > 20mm Ø: 20 x d
Operat. temp. fixed min/max: -40 °C / +80 °C
Operat. temp. fixed min/max: -15 °C / +80 °C
Temp. at conductor:+ 70 °C Operating temperature; +160 °C Short-circuit temperature
Product identification: Aein bei ke SHANGHAI AEIN WIRE ＆ CABLE CO.,LTD Model number specification voltage CE Meter scale
