Product introduction
-
01 Product application
Power, control and connection cables for drive systems with inverter technology for fixed and mobile installation, no tensile stress, no clear cable route. Suitable for dry, wet and wet indoor use. Outdoor use (black), but not underground.
-
02 Product characteristics
03· Cables are resistant to specific types of oil
· Low coupling resistance of cable
· K-type black outer sheath is UV resistant, and the sheath remains elastic at low temperatures
· Passed electromagnetic compatibility shielding enables
·the frequency converter to operate normally without external electromagnetic interference
· Low cable capacitance makes the connecting cable between the motor and the inverter longer
·Increased transmission
·power over the same conductor cross
·section compared to the standard 2YSL(St)CY version.
-
Technical certification
· Comply with RoHS standards
· Comply with Directive 2014/35/EU-Guideline (" Low Voltage Directive ")CE
·Customization is acceptable for special construction, other sizes, core and jacket color products

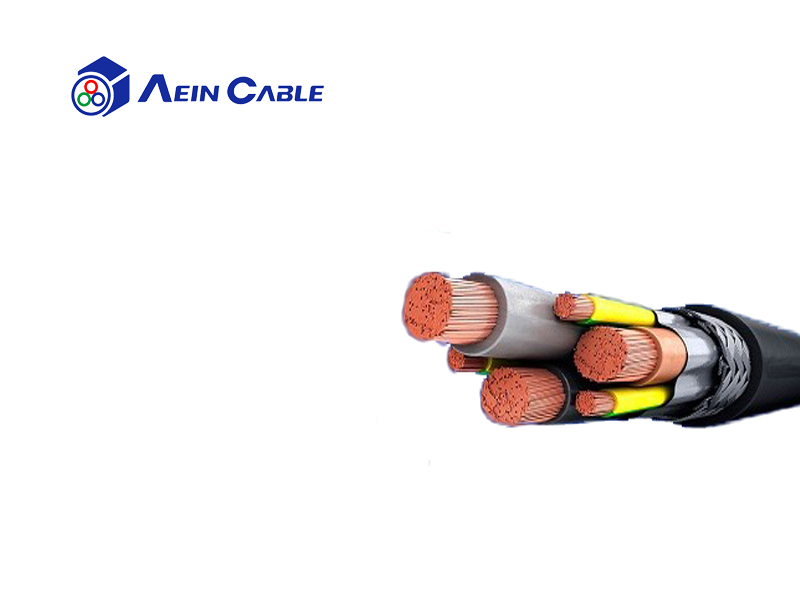

Product structure
Conductor material: bare copper wire
Conductor type: According to IEC 60228 cl.5
Core wire insulation :XLPE
Core identification: GNYE color core conforming to DIN VDE 0293 standard
Stranding: stranding in layers
Shielding layer: aluminum foil wrap, coverage rate 100%; Metal braided shielding
Sheath :PVC
Jacket color: black RAL9005; Transparent (optional)
Rated voltage :Uo/U: 0.6/1kV
Test voltage: 3.5kV
Conductor resistance: according to IEC 60228 cl.5 standard
Insulation resistance: less than 20 MΩ x km
Small bending radius fixed :12 mm below Ø :5x d; Below 20 mm Ø :7.5x d; >20 mm Ø: 10x d
Small bending radius movement :12 mm below Ø :10 x d; Ø below 20 mm: 15 x d; >20 mm Ø: 20 x d
Temperature rating fixed :-40°C/+80°C
Temperature rating shift :-15°C/+80°C
Temperature :+ 70°C operating temperature; +160°C short-circuit temperature
Product identification :Aein beike SHANGHAI AEIN WIRE & CABLE CO.LTD Model Specification Voltage CE meter standard
