Product introduction
-
01 Product application
Applicable to wind turbines and fixed towers in wind power generation equipment or other similar occasions and cables matched with wind power generation equipment factories. It can be used in wind power generation equipment in onshore and offshore wind farms.
-
02 Product characteristics
Torsion resistance (torsion 1440° 10,000 times at normal temperature, 2,000 times at low temperature) ·Excellent resistance to oil, acid, chemicals, water, ozone, extreme temperatures, cutting, tearing and abrasion. ·Oil resistance (100℃, 24h) ·Resistant to artificial weathering (1008h)
·Salt spray resistance (336h)
-
03 Technical certification ·RoHS Compliant
·Complies with 2014/35/EU-Guidelines ("Low Voltage Directive") CE.
• We are pleased to produce special versions, other dimensions, core and jacket colours on request.

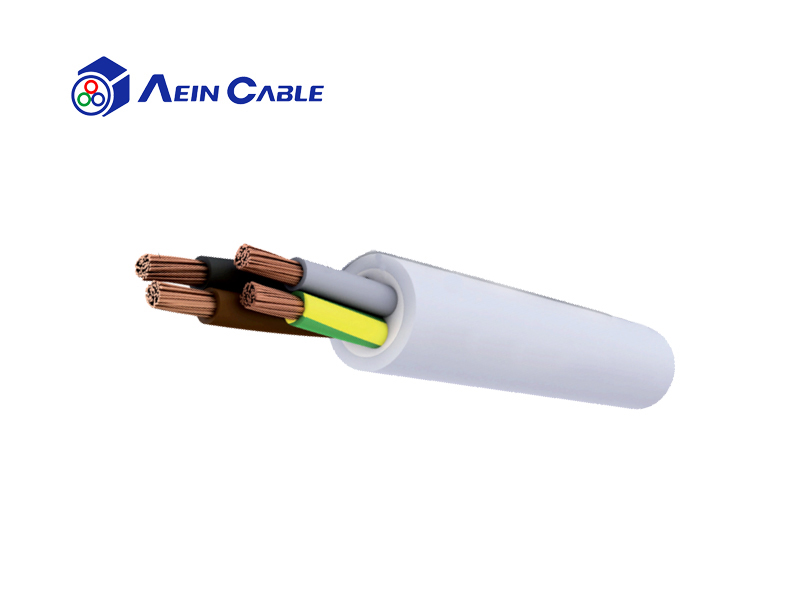

Product structure
Conductor material: Bare copper stranded wire
Conductor class: In accordance with DIN VDE 0295 5 Class, refer to IEC 60228 5 class
Insulation: EI4 Type A crosslinked elastomer mixture
Core identification: In accordance with DIN VDE 0293-308 With or without GNYE
Stranding: Stranded in layers
Outer sheath:EM2 Type A crosslinked elastomer mixture
Jacket color: Black
Rated voltage: Uo/u: 450/750 V
Test voltage: 2.5KV
Min. bending radius fixed: In accordance with DIN VDE 0298 The first 3 part
Min, bending radius moved: In accordance with DIN VDE 0298 The first 3 part
Operat. temp. fixed min/max:-40 °C/ +90 °C
Burning behavior: Conform to IEC 60332-1
Standard:EN50525-2-21
Product identification Aein bei ke SHANGHAI AEIN WIRE & CABLE CO.,LTD Model number specification voltage
