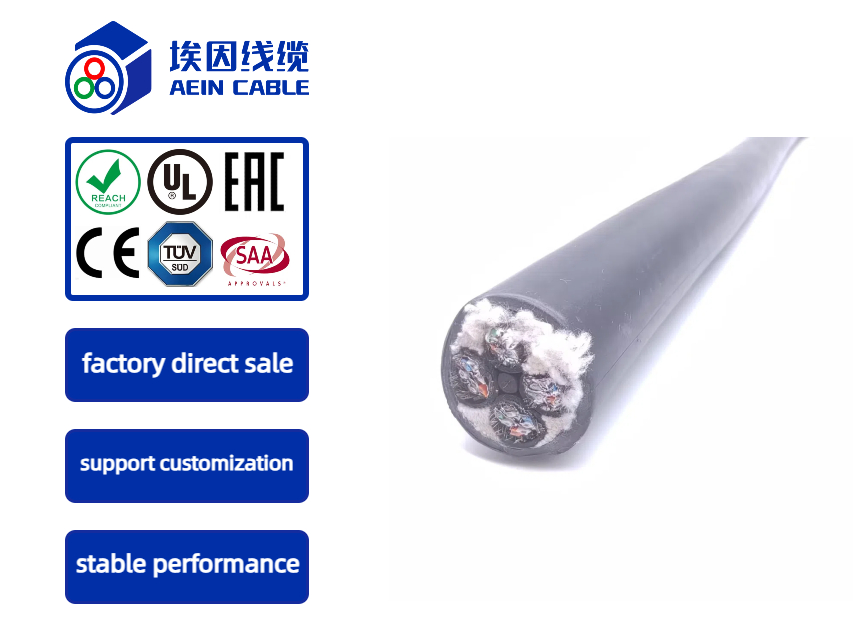

Conductor material: bare copper

Conductor class: According to DIN VDE 0295 Class 6 conductors or. IEC 60228 Class 6 conductors

Core wire insulation :PVC-J-105-003(2105-LF)

Core identification:< 0.5mm ²:5 core and below using color separation, IN line with n.DIN 47100, more than 5 core multi-core cable using core wire color separation, white ink dot separation; ≥0.5mm²: 5 core and below using color separation, including yellow/green line, in line with n, DIN 47100, more than 5 core multi-core cable using black core wire, white ink numbered distinction (if there are special requirements on demand)

Power cable: Black sheath white print U/L1:V/L2:W/L3:GN/PE

Cable forming: Each two wire cores are twisted with a short pitch, and then all twisted wires are twisted together around the line with a short pitch

Shielding: tinned copper wire braid shielding shielding density ≥80%

Outer sheath :DQPVC-H-90-003(9039-LF) Low wear, anti-cutting, low adhesion

Jacket color: black (RAL 9005); Grey (RAL 7001); Orange (RAL 2004); Green (RAL 6018)

Rated voltage :25 and above :0.6/1KV; 0.75 to 16:300/500V:0.5 and below 300/300V

Test voltage :3500V:2000V:1500V

Conductor resistance :+20°C according to DIN VDE 0295 Class 6 conductors or IEC 60228 Class 6 conductors

Small bending radius fixed :4 x d

Small bending radius movement :7.5 x d

Moving speed: Self-supporting: max.8 m/s, coasting: max.5 m/s

Conductor length: Self-supporting/coasting max.400 m

Acceleration :max.100 m/s²

Bending cycle :<35 times /Min, life >8 million times

Operating temperature fixed minimum/maximum :-30°C/+100 °C(UL: 90 °C)

Operating temperature shift minimum/maximum :-30°C/+100 °C(UL: 90 °C)

Flame retardant rating: According to IEC 60332-1-2:UL/CUI FT1, FT2

Certification :CE; UL/CUL If UL certification is required, please note it separately

Printing label Aein bei Ke SHANGHAI AEIN WIRE & CABLE CO.LTD Model Specification Voltage FLEXIBLE CONNECTION OIL RESISTANT ABRASION RESISTANT CE Label of drag chain Meter scale
