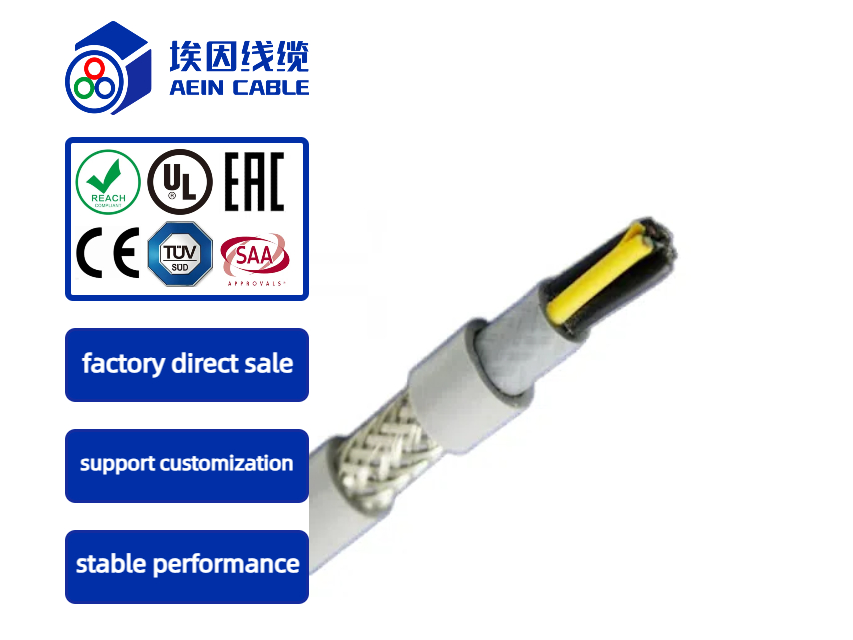

Conductor material: bare copper stranded
Conductor class: according to DIN VDE 0295 Class 6,lEC 60228 cl.6
Core wire insulation :PVC-J-105-003(2105-LF)
Core line identification :<05mm²:5 core and below using color separation, IN line with n.DIN 47100, more than 5 core multi-core cable using core line color separation, white ink dot distinction; ≥ 0.5mm ²: Color separation is adopted for 5 cores and
below, including yellow/green wire, in line with n.DIN 47100, black core wire is adopted for multi-core cables with more than 5 cores, white ink numbering is differentiated (customized according to special requirements)
Overall stranding: Each two wire cores are twisted with a short pitch, and then all twisted wires are twisted together around the center line with a short pitch
Shielding: tinned copper braid, coverage 80%(optional)
Outer sheath :PUR (matte mist surface oil, acid, alkali, corrosion and waterproof)
Jacket color: Orange, RAL2004 gray, RAL7001 black, RAL9005
Rated voltage :25 and above :0.6/1KV; 0.75 to 16:300/500V:0.5 and below 300/300V
Test voltage :3500V:2000V:1500V
Conductor resistance: conforming to DIN VDE 0295 cl.6 /IEC 60228 cl.6 at +20 ° C
Insulation resistance: less than 20 GΩ x km at +20℃
Bending radius fixed :4 x d
Bending radius movement :7.5 x d
Moving speed: Self-supporting: max.10 m/s, coasting: max.5 m/s
Conductor length: Self-supporting/coasting max.400 m
Acceleration :max.100 m/s²
Bending cycle :<35 times /Min, life >12 million times
Temperature class fixed :-40 ℃/+90℃
Temperature rating shift :-30 ℃/+90℃
