Product introduction

01 Product application as connecting cable for the internal and external wiring of filling-station pumps, petrol station systems, data collection systems and in such areas where an increased oil and petrol resistance is demanded or regulated by law. Also suitable for laying directly in the ground.
02 Product characteristics•largely resistant to acids, bases and specified types of oil
• halogen-free and flame-retardant•no direct laying on pallets, in channels or trays (exceptional as potential compensation) •all usual standard colours available
03 Technical certification
•conform to RoHS •conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

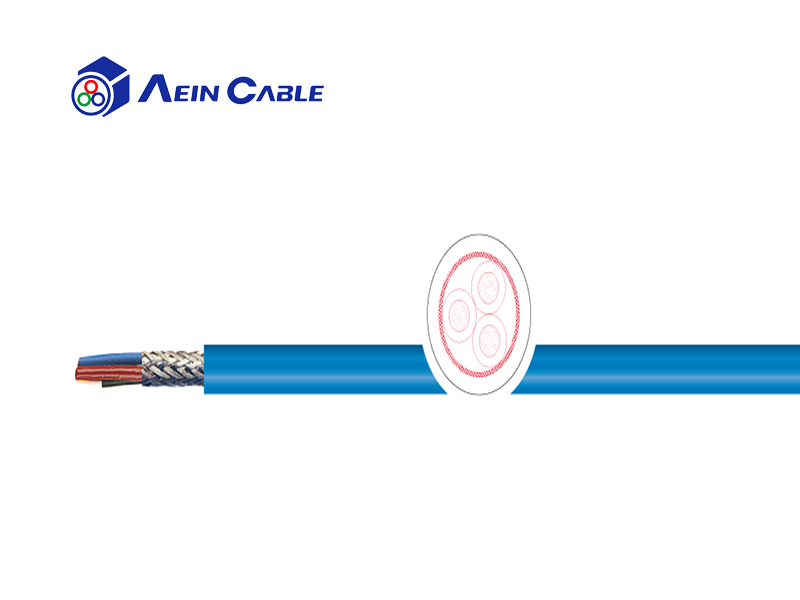

Product structure

Conductor material:	LIYCYÖ: bare copper strand; LI2YCYVÖ: tinned copper strand
Conductor class:	Acc. to DIN VDE 0295 class 5 resp. IEC 60228 cl. 5
Core insulation:	LIYCYÖ: PVC; LI2YCYVÖ: PE
Core identification:	Special colours
Stranding:	Cores stranded in layers
Shield3:	Tinned copper braid
Outer sheath:	PVC, oil and petrol resistant
Sheath colour:	Blue
Rated voltage:	LIYCYÖ: 500 V; LI2YCYVÖ: 300 V
Testing voltage:	LIYCYÖ: 1,2 kV; LI2YCYVÖ: 750 V
Conductor resistance:	LIYCYÖ: max. 26 Ω / km; LI2YCYVÖ: max. 38 Ω / km
Capacity:	LI2YCYVÖ: core-shield max. 150 pF/m
Min. bending radius fixed:	7,5 x d during installation
Min. bending radius moved:	15 x d
Operat. temp. fixed min/max:	-30 °C / +70 °C
Operat. temp. moved min/max:	- 5 °C / +70 °C
