Product introduction
  • 01 Product application
        • For heavy duty applications with torsion movements
          • Almost unlimited resistance to oil, also with bio-oils
          • Indoor and outdoor applications, UV resistant
          • Especially for robots and 3D movements
          • Handling, lead screw drives


  • 02 Product characteristics •Conform to RoHS standard
    •UV resistance
    •Flame retardant acc. to CSA C22.2 No.2556-15 FT2
    •Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
    •Strong tolerance to oils, coolants and lubricants
  • 03 Technical certification

    Conform to  UL&CUL standard UL758,CSA C22.2 No. 210

    •Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

    •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

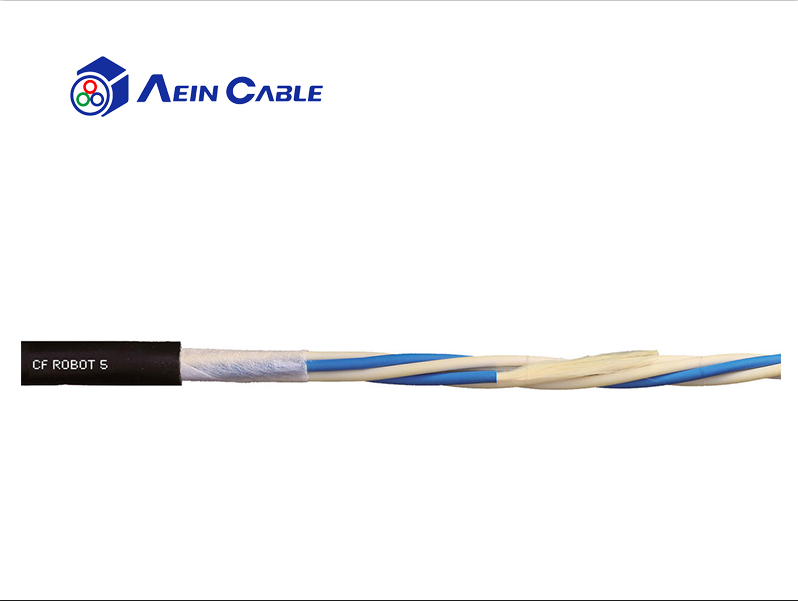

Product structure
Dynamic information

Min. bend radius, e-chain® (factor)

8.0 x d

Min. bend radius, e-chain®

3.3 inch (85.0 mm)

Min. bend radius, flexible (factor)

5.0 x d

Min. bend radius, flexible

2.7 inch (68.0 mm)

Min. bend radius, fixed (factor)

10.0 x d

Min. bend radius, fixed

1.7 inch (42.5 mm)

Temperature, e-chain® min.

-31 °F (-35 °C)

Temperature, e-chain® max.

158 °F (70 °C)

Temperature, flexible

-40°F to +176°F (-20°C to +60°C) (following DIN EN 60811-504)

Temperature, fixed

-67°F to +176°F (-55°C to +80°C) (following DIN EN 50305)

max. twisted

180 °/m

a max.twisted

60 °/s²

Length of travel

Robots and motions in 3D area, Class 1


Torsion ± 180°, with 1 m cable length
Cable structure

Conductor

50/125 μm, 62.5/125 μm special fixed wire elements with aramide strain relief.



Unshielded

No


Outer jacket Low-adhesion mixture on the basis of TPE, especially abrasionresistant and highly flexible, adapted to suit the requirements in e-chains®.


Jacket color

Jet black (similar to RAL 9005)
