Spot stock

Min. bend radius, e-chain® (factor)

7.5 x d

Min. bend radius, e-chain®

3.1 inch (78.8 mm)

Min. bend radius, flexible (factor)

6.0 x d

Min. bend radius, flexible

2.5 inch (63.0 mm)

Min. bend radius, fixed (factor)

4.0 x d

Min. bend radius, fixed

1.7 inch (42.0 mm)

Temperature, e-chain® min.

41 °F (5 °C)

Temperature, e-chain® max.

158 °F (70 °C)

Temperature, flexible

+23 °F to +158 °F (-5°C to +70°C)

Temperature, fixed

+5 °F to +158 °F (-15 °C to +70 °C) (following DIN EN 50305)

v max., unsupported

33 ft/s (10 m/s)

v max. gliding

16 ft/s (5 m/s)

a. max.

262.5 ft/s² (80 m/s²)

Length of travel

Travels up to 328 ft (100 m)

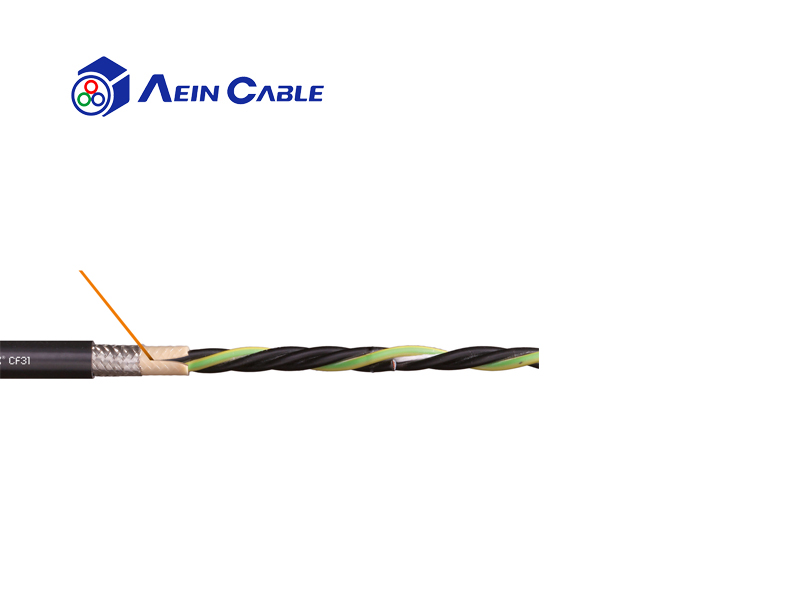

Conductor

Fine-wire stranded conductor in especially bending-resistant version consisting of bare copper wires (according to DIN EN 60228)

Conductor insulation

Mechanically high-quality, XLPE mixture

Conductor construction

Cores stranded in short pitch length over a centre element for high tensile stresses

Conductor identification

Cores black with white numerals, one core green-yellow.
1.Core: U / L1 / C / L+
2.Core: V / L2
3.Core: W / L3 / D / L-
4. Core: 4 / N

Inner jacket

PVC mixture suited to the requirements in e-chains®

Overall shield

Extremely bending-resistant braiding made of tinned copper wires. Coverage approx. 70% linear, approx. 90% optical.

Unshielded

No

Outer jacket

Low-adhesion, oil-resistant mixture on the basis of PVC, adapted to suit the requirements in e-chains® (following DIN EN50363-4-1)

Jacket color

Jet black (similar to RAL 9005)

CFRIP®

Quickly stripping: CFRIP® tear strip at inner jacket
