Product introduction

01 Product application H05Z-K and H07Z-K as halogen-free and environmentally single core for internal wiring of devices as well as protected laying within and on shiners. Laying within pipes on-wall and in-wall permitted for signal facilities
02 Product characteristics•largely resistant to acids, bases and specified types of oil
• halogen-free and flame-retardant•no direct laying on pallets, in channels or trays (exceptional as potential compensation) •all usual standard colours available
03 Technical certification
•conform to RoHS •conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

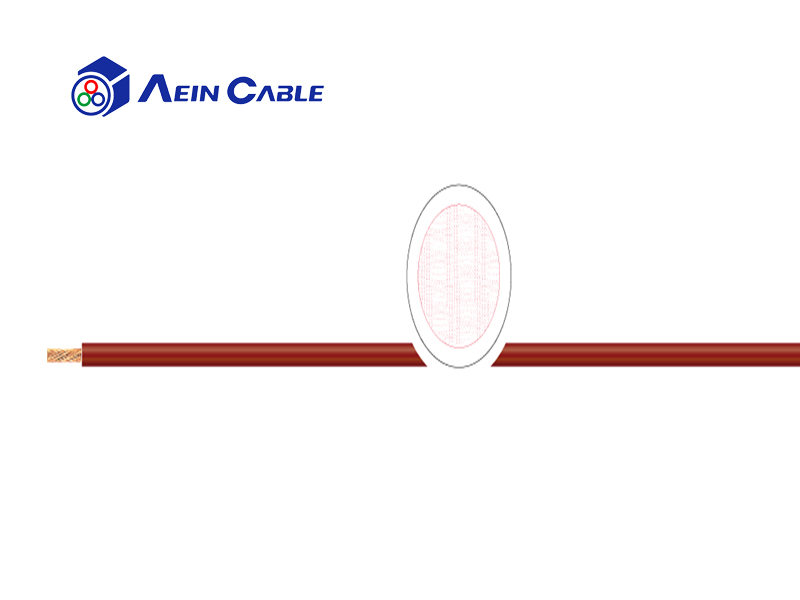

Product structure

Conductor material:	LIHvz: copper strand tinned; H05Z-K, H07Z-K: bare copper strand.
Conductor class:	Acc. to IEC 60228 class 5
Core insulation:	Halogen-free special compound
Core identification:	Different colours
Rated voltage:	H05Z-K: 300/500 V; H07Z-K: 450/750 V peak voltage LiHvz: 500 V (0,14mm²), 900 V (0,25mm²)
Testing voltage:	LiHvz: 1,2kV (0,14mm²) 2,5kV (0,25mm²) H05Z-K: 2kV; H07Z-K: 2,5kV
Conductor resistance:	At +20 °C LiHvz acc. to VDE 0812; H05Z-K and H07Z-K acc. to IEC 60228
Current-carrying-capacity:	Acc. to. DIN VDE, see Technical Guidelines
Min. bending radius fixed:	4 x d
Min. bending radius moved:	15 x d
Operat. temp. fixed min/max:	-30 °C / +90 °C
Halogen free:	Acc. to IEC 60754
Smoke density:	Acc. to IEC 61034
Burning behavior:	Self-extinguishing and flame-retardant acc. to IEC 60332-1-2
Standard:	LiHvz similar to VDE0812; H05Z-K and H07Z-K acc. to EN 50525-3-41
Approvals:	H05Z-K und H07Z-K: HAR
