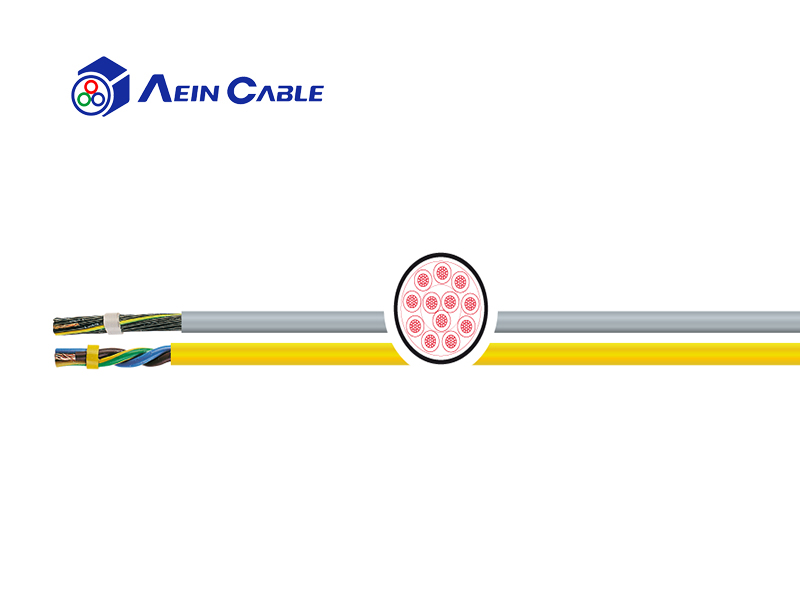

Location： Home > Product > By Alternative Brand > TKD CABLE > Alternative TKD (N)YMH11YÖ Installation Cable

Product introduction

01 Product application screened power, control and connecting cable in electrical facilities when increased mineral oil resistance is required. For trouble-free data and signal transmission at fixed laying and flexible applications, without tensile stress and without cable routing. Suitable for use in dry, humid and wet rooms. Outdoor use only with UV-protection and no laying underground.
02 Product characteristics•increased oil resistant special-PUR-outer sheath resistance to acids, bases, dissolver, hydrolysis, lubricants etc. (see table of chemical resistance) •LABS-free (during production)
•cutproof, tearproof
•UV-resistant PUR outer sheath•PUR yellow: Safety cable with yellow outer sheath
03 Technical certification
•conform to RoHS •conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure

Conductor material:	Bare copper strand
Conductor class:	Acc. to IEC 60228 cl. 5
Core insulation:	PVC
Core identification:	PUR YELLOW: up to 5 cores acc. to DIN VDE 0293-308 coloured cores, from 6 wires TKD coloured code with or without GNYE; PUR GREY: acc. to DIN VDE 0293 black cores with white numerals with GNYE from 3 cores
Stranding:	Stranded in layers
Outer sheath:	PUR
Sheath colour:	Yellow RAL 1016 or grey RAL 7001
Rated voltage:	Uo/U: 300/500 V
Testing voltage:	3 kV
Conductor resistance:	Acc. to IEC 60228 cl. 5
Insulation resistance:	Min. 20 MΩ x km
Current-carrying-capacity:	Acc. to. DIN VDE, see Technical Guidelines
Min. bending radius fixed:	5 x d
Min. bending radius moved:	12,5 x d
Operat. temp. fixed min/max:	-40 °C / +80 °C
Operat. temp. moved min/max:	-5 °C / +70 °C
