Product introduction
  • 01 Product application
    • Typical application areas:

       For flexing applications

       Without influence of oil

       Preferably indoor applications

       Especially for unsupported travels

       Wood/stone processing, packaging industry, supply systems, handling, adjusting equipment

  • 02 Product characteristics •Conform to RoHS standard
    •UV resistance
    •Flame retardant acc. to CSA C22.2 No.2556-15 FT2
    •Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
    •Strong tolerance to oils, coolants and lubricants
  • 03 Technical certification

    Conform to  UL&CUL standard UL758,CSA C22.2 No. 210

    •Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

    •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

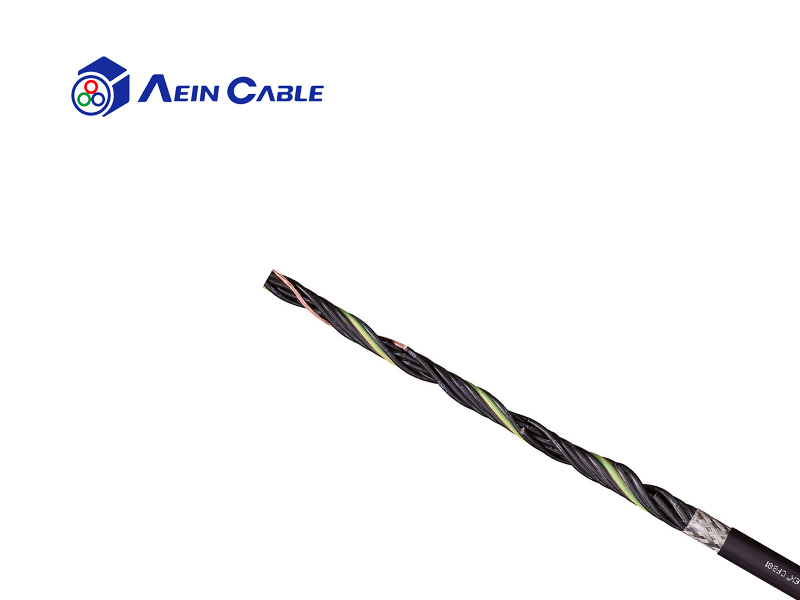

Product structure
Dynamic information

Min. bend radius, e-chain® (factor)

12.5 x d

Min. bend radius, e-chain®

3.2 inch (81.3 mm)

Min. bend radius, flexible (factor)

10.0 x d

Min. bend radius, flexible

2.6 inch (65.0 mm)

Min. bend radius, fixed (factor)

7.0 x d

Min. bend radius, fixed

1.8 inch (45.5 mm)

Temperature, e-chain® min.

41 °F (5 °C)

Temperature, e-chain® max.

158 °F (70 °C)

Temperature, flexible

+23 °F to +158 °F (-5°C to +70°C)

Temperature, fixed

+5 °F to +158 °F (-15 °C to +70 °C) (following DIN EN 50305)

v max., unsupported

10 ft/s (3 m/s)

a. max.

65.6 ft/s² (20 m/s²)

Length of travel

Unsupported up to 33 ft (10 m)


Cable structure

Conductor

Conductor consisting of bare copper wires (according to DIN EN 60228)

Conductor insulation

Mechanically high-quality, PVC mixture

Conductor construction

Conductors stranded in short pitch in one position

Conductor identification

Cores black with white numerals, one core green-yellow

Overall shield

Braid made of tinned copper wires. Shield about 60% optical.



Unshielded

No

Outer jacket

Low-adhesion mixture on the basis of PVC, adapted to suit the requirements in e-chains®.



Jacket color

Jet black (similar to RAL 9005)
