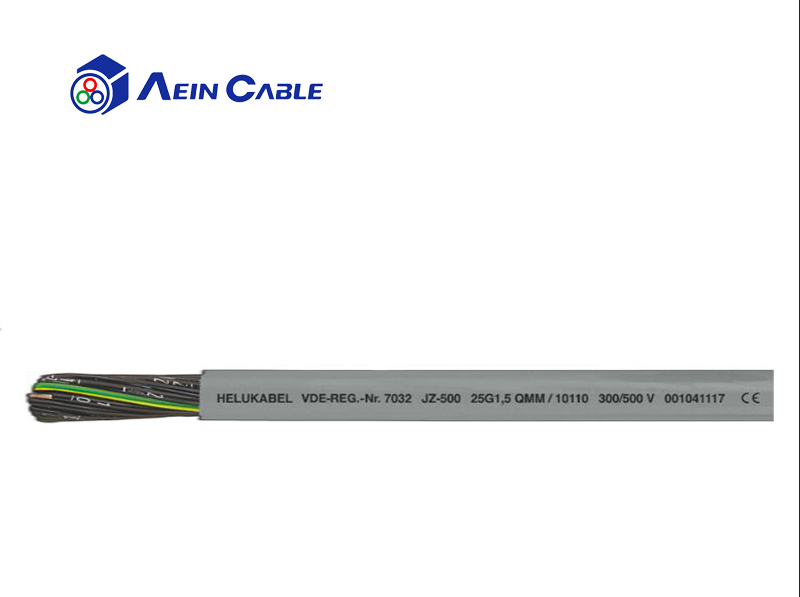

Location： Home > Product > By Alternative Brand > HELUKABEL > Alternative Helukabel H05VV5-F (NYSLYÖ-JZ) Flexible Number Coded Cable

Product introduction

01 Product application
- - These cables are used for flexible use for medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms but not suitable for open air.These are designed as control and connecting cables to machines, tool machineries, conveyor belts and production lines. These cables are not effected to the chemical influences. Cables for moist and wet rooms, specially used for machines in breweries, bottling plants and car washing stations.These cables may be allowed to move once installed provided that the cables are not mechanically stressed during movement.

    CE = Product conforms with Low-Voltage Directive 2014/35/EU.
02 Product characteristics •Conform to RoHS standard •Flame retardant DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2 •Oil resistance conform to Oil resistant acc. to DIN EN 60811-404 •Strong tolerance to oils, coolants and lubricants
03 Technical certification
•Conform to DIN VDE 0482-332-1-2 / DIN EN 60332- 1-2 / IEC 60332-1-2

•Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure

	Conductor	Copper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5
	Conductor insulation	PVC acc. to DIN VDE 0207-363-3 / DIN EN 50363-3 (compound type TI2)
	Identification	Core identification acc. to DIN VDE 0293-334, black cores with consecutive labeling in white digits
	Stranding	Cores stranded in layers with optimal lay lengths
	Outer jacket	Oil-resistant special PVC acc. to DIN VDE 0207-363- 4-1 / DIN EN 50363-4-1 (compound type TM5)
	Jacket color	Grey (RAL 7001)
	Length marking	in meters
