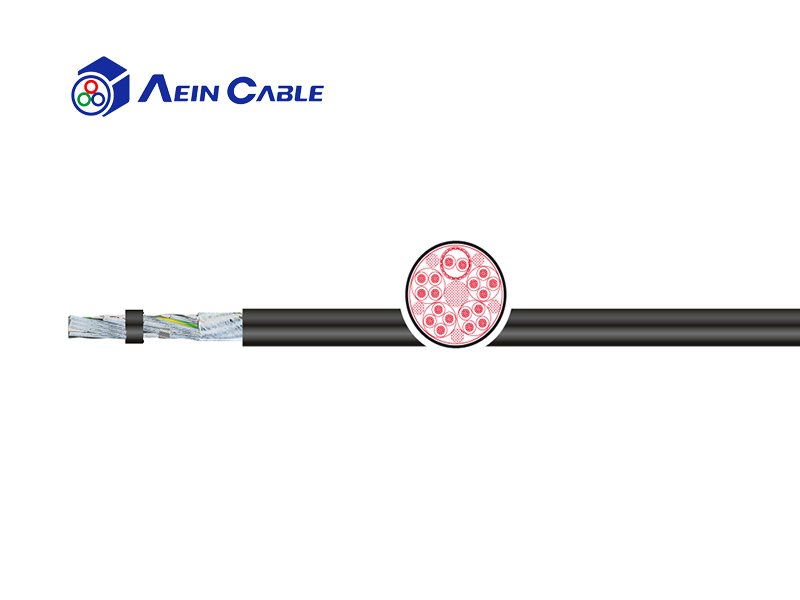

Conductor material:
|
Bare copper strand
|
|
Conductor class:
|
Super fine wire acc. to IEC 60228 cl. 6 pt. 4
|
|
Core insulation:
|
TPE
|
|
Core identification:
|
≥ 0,5 mm²: white cores with black numerals, G: with GNYE, ≤ 0,34 mm²: coloured acc. to DIN 47100
|
|
Stranding:
|
≤ 11 cores: stranded in layers, ≥ 12 cores: stranded in bundles, elements or pairs stranded separately, each element with sliding tape
|
|
Shield:
|
C-elements: extremely torsion resistant spiral shield of tinned copper wires under sliding tape
|
|
Overall stranding:
|
Cores & elements stranded together
|
|
Shield3:
|
C-PUR: extremely torsion resistant spiral shield of tinned copper wires over sliding tape
|
|
Outer sheath:
|
PUR
|
|
Sheath colour:
|
Black (RAL 9005)
|
|
Rated voltage:
|
IEC: 0,6/1 kV - UL: 1.000 V
|
|
Current-carrying-capacity:
|
Acc. to DIN VDE
|
|
Min. bending radius fixed:
|
4 x d
|
|
Min. bending radius moved:
|
7,5 x d < 10 m TL | 10 x d ≥ 10 m TL | Torsion: 10 x d
|
|
Operat. temp. fixed min/max:
|
-50 °C / +80 °C
|
|
Operat. temp. moved min/max:
|
-30 °C / +80 °C, torsion: -25 °C / +80 °C
|
|
Burning behavior:
|
Flame-retardant acc. to IEC 60332-1-2, VW-1, FT1
|
|
Torsion:
|
+/- 180 °/m
|
|
Approvals:
|
UL/CSA: cURus - 1.000V, 80°C
|
|
Speed:
|
Self-supporting: max. 10 m/s, gliding: max. 5 m/s | Torsion: max.180 °/s
|
