Location： Home > Product > By Alternative Brand > TKD CABLE > Alternative TKD KYSTFUY Cable

Product introduction

01 Product application high-flexible lift control cable with supporting element for medium mechanical stress. Suitable for dry and humid rooms.
02 Product characteristics•KYSTFUY: sustain braid and single shielded cores 0.5 mm², EMC
• free from lacquer damaging substances (during production)
03 Technical certification
•conform to RoHS •conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

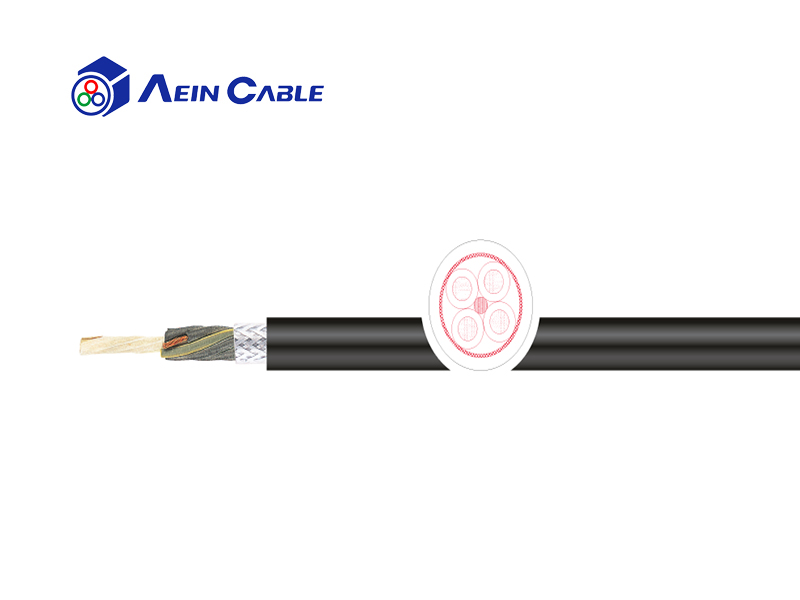

Product structure

Conductor material:	Bare copper strand
Conductor class:	Acc. to DIN VDE 0295 class 6 resp. IEC 60228 cl. 6
Core insulation:	PVC, PE (0,5)
Core identification:	Acc. to VDE 0293 black with white numerals with or without GNYE; KYSTFUY: cores 0,5 mm² transparent / pairs 0,5 mm² acc. to DIN 47100
Stranding:	Cores stranded in layers
Overall stranding:	Cores stranded in layers
Shield3:	Copper braid/wrapped tinned wires; coverage ca. 80%
Outer sheath:	PVC
Sheath colour:	Black, RAL 9005
Rated voltage:	0,5 mm² - 300 V; >0,75 mm² - 300/500 V
Current-carrying-capacity:	Acc. to DIN VDE, see Technical Guideline
Min. bending radius fixed:	12 x d
Min. bending radius moved:	12 x d
Operat. temp. fixed min/max:	-30 °C / +70 °C
Operat. temp. moved min/max:	-5 °C / +70 °C
Burning behavior:	Self-extinguishing and flame retardant acc. to IEC 60332-1
Suspension height:	KYSTCY: max. 25 m / KYSTCUY, KYSTFUY: max. 50 m
Standard:	Similar to DIN VDE 0250
