Product introduction
  • 01 Product application
        • For heavy duty applications with torsion movements
          • Almost unlimited resistance to oil, also with bio-oils
          • Indoor and outdoor applications, UV resistant
          • Especially for robots and 3D movements, handling, lead screw drives


  • 02 Product characteristics •Conform to RoHS standard
    •UV resistance
    •Flame retardant acc. to CSA C22.2 No.2556-15 FT2
    •Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
    •Strong tolerance to oils, coolants and lubricants
  • 03 Technical certification

    Conform to  UL&CUL standard UL758,CSA C22.2 No. 210

    •Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

    •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

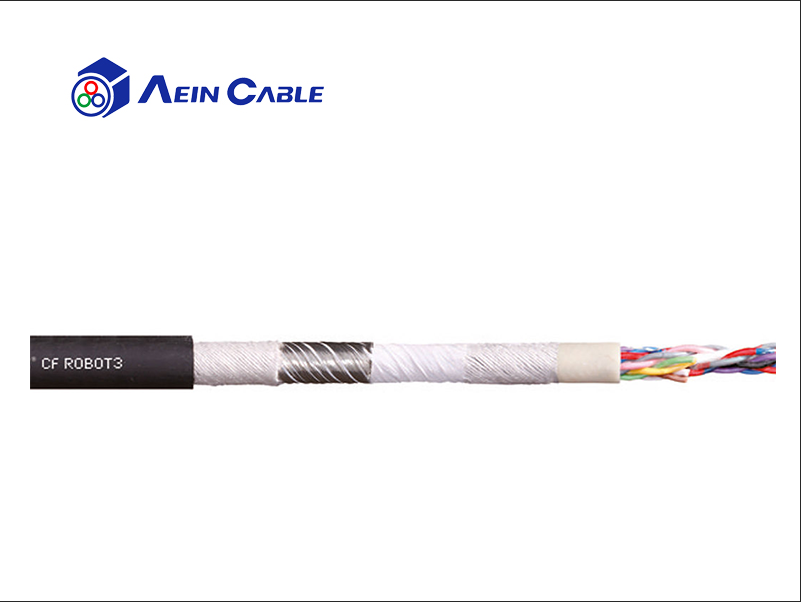

Product structure
Dynamic information

Min. bend radius, e-chain® (factor)

10.0 x d

Min. bend radius, e-chain®

3.7 inch (95.0 mm)

Min. bend radius, flexible (factor)

8.0 x d

Min. bend radius, flexible

3.0 inch (76.0 mm)

Min. bend radius, fixed (factor)

5.0 x d

Min. bend radius, fixed

1.9 inch (47.5 mm)

Temperature, e-chain® min.

-13 °F (-25 °C)

Temperature, e-chain® max.

176 °F (80 °C)

Temperature, flexible

-40 °F to +176 °F (-20 °C to +80 °C)

Temperature, fixed

-58 °F to 176 °F (-50 °C to 80 °C)

max. twisted

180 °/m

a max.twisted

60 °/s²

Length of travel

Robots and motions in 3D area, Class 1


Torsion ± 180°, with 1 m cable length

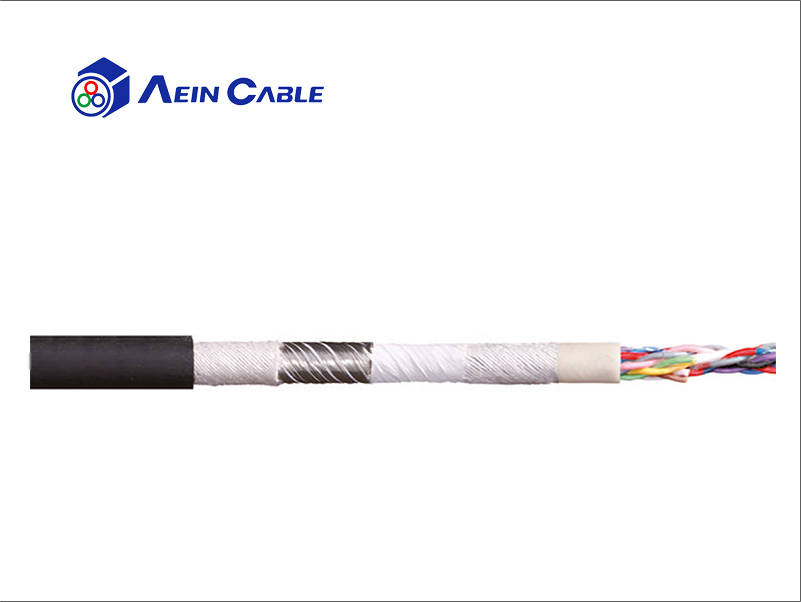

Cable structure

Conductor

Very finely stranded special cores of particularly high-flex design made of bare copper wires.


Conductor insulation
Mechanically high-quality TPE mixture

Overall shield Torsion-resistant tinned braided copper shield. Coverage approx.80 % optical.

Element shield
Extremely torsion-resistant tinned braided copper shield. Coverage approx. 85 % optical


Unshielded

No


Outer jacket Low-adhesion, halogen-free, highly abrasion-resistant mixture on the basis of PUR, adapted to suit the requirements in energy chains® (following DIN EN 50363-10-2).

Conductor identification
According to measuring system specification


Jacket color

Steel blue (similar to RAL 5011)
