Location： Home > Product > By Alternative Brand > IGUS CABLE > Alternative IGUS Fiber Optic Cable CFLG-G

Product introduction

01 Product application
- - For heaviest duty applications with 5-7.5 xd

    Maximum EMC protection, with high transmission qualities

    Almost unlimited resistance to oil

    Indoor and outdoor applications

    Unsupported and gliding travel distances (horizontal) up to 1,312 ft (400 m) and more

    Crane applications, conveyer technology, low-temperature applications
02 Product characteristics •Conform to RoHS standard
•UV resistance
•Flame retardant acc. to CSA C22.2 No.2556-15 FT2
•Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
•Strong tolerance to oils, coolants and lubricants
03 Technical certification
•Conform to UL&CUL standard UL758,CSA C22.2 No. 210

•Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

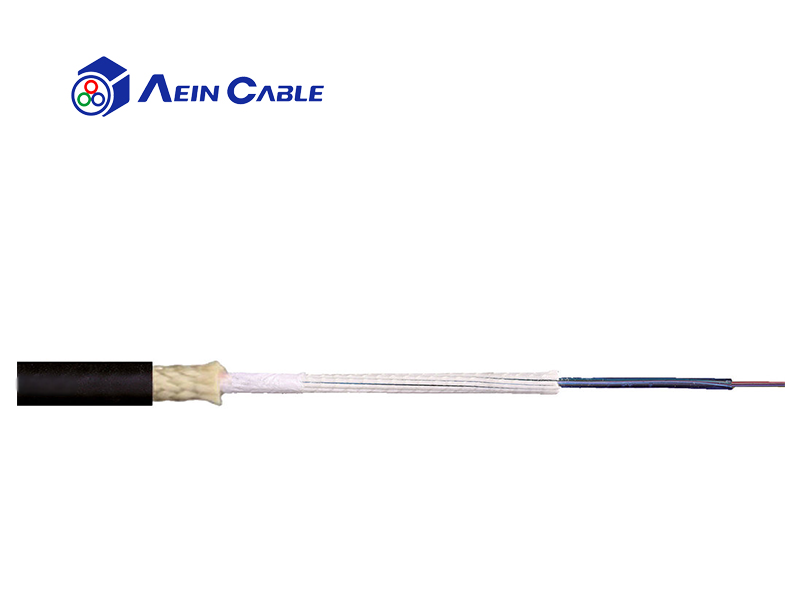

Product structure

	Min. bend radius, e-chain® (factor)	8.0 x d
	Min. bend radius, e-chain®	3.9 inch (100.0 mm)
	Min. bend radius, flexible (factor)	5.0 x d
	Min. bend radius, flexible	3.1 inch (80.0 mm)
	Min. bend radius, fixed (factor)	10.0 x d
	Min. bend radius, fixed	2.0 inch (50.0 mm)
	Temperature, e-chain® min.	-40 °F (-40 °C)
	Temperature, e-chain® max.	176 °F (80 °C)
	Temperature, flexible	-40°F to +176°F (-20°C to +60°C) (following DIN EN 60811-504)
	Temperature, fixed	-67°F to +176°F (-55°C to +80°C) (following DIN EN 50305)
	v max. unsupported	33 ft/s (10 m/s)
	a max.	65.6 ft/s² (20 m/s²)
	Length of travel	Travels up to 1312 ft and more(400 m and more)

	Conductor	9/125 μm, 50/125 μm,62.5/125 μm fibres in gel-filled hollow cores.
	Unshielded	No
	Outer jacket	Low-adhesion mixture on the basis of TPE, especially abrasionresistant and highly flexible, adapted to suit the requirements in e-chains®.
	Jacket color	Jet black (similar to RAL 9005)
