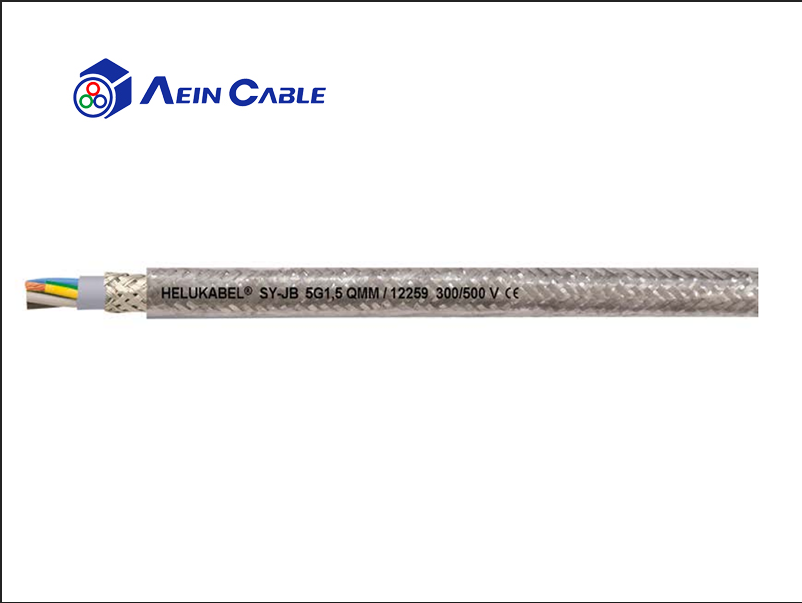

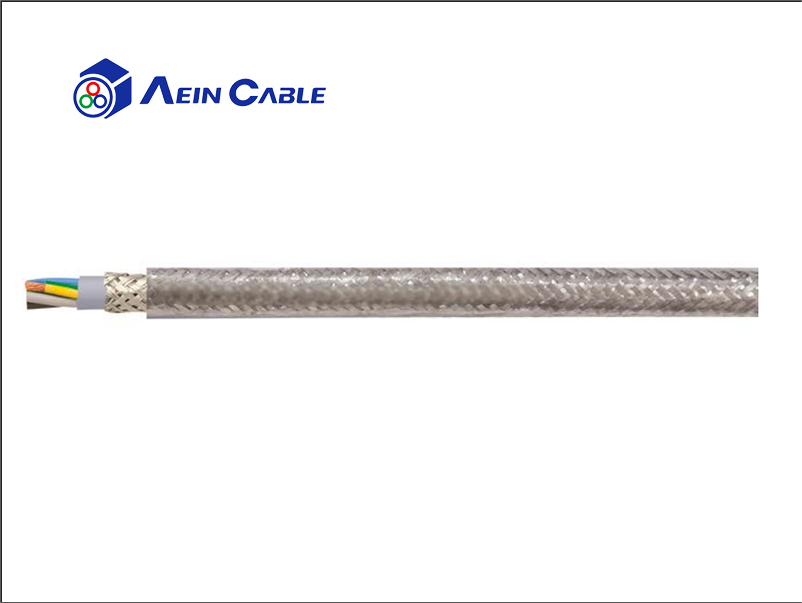

Location： Home > Product > By Alternative Brand > HELUKABEL > Alternative Helukabel SY-JB / SY-OB Galvanised Steel Wire Braid Cable

Product introduction

01 Product application
- - Used for VUsed as a connection and control cable for flexible applications involving medium mechanical stress with free movement, without tensile stress and without forced motion control in dry, damp and wet rooms, however, not suitable for outdoor use in machine tools, plant construction and data technology. Due to the dense braiding, the cable is well protected against mechanical damage. The galvanisation of the braid prevents corrosion and guarantees improved solderability of the braid.
02 Product characteristics • largely resistant to: oil, for details, see "Technical Information" • The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers
03 Technical certification
• flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332- 1-2 / IEC 60332-1-2

Product structure

	Conductor	Copper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5
	Conductor insulation	Special PVC
	Identification	Core identification acc. to JB/OB colour code, colour coded
	Protective conductor	starting with 3 cores, G = with protective conductor GN-YE, in the outer layer, x = without protective conductor (OZ)
	Stranding	Cores stranded in layers with optimal lay lengths
	Steel wire braid	Galvanised
	Inner jacket	PVC acc. to DIN VDE 0207-363-4-1 / DIN EN 50363-4-1 (compound type TM2)
	Outer jacket	PVC acc. to DIN VDE 0207-363-4-1 / DIN EN 50363-4-1 (compound type TM2)
	Jacket color	Transparent
	Length marking	in meters
