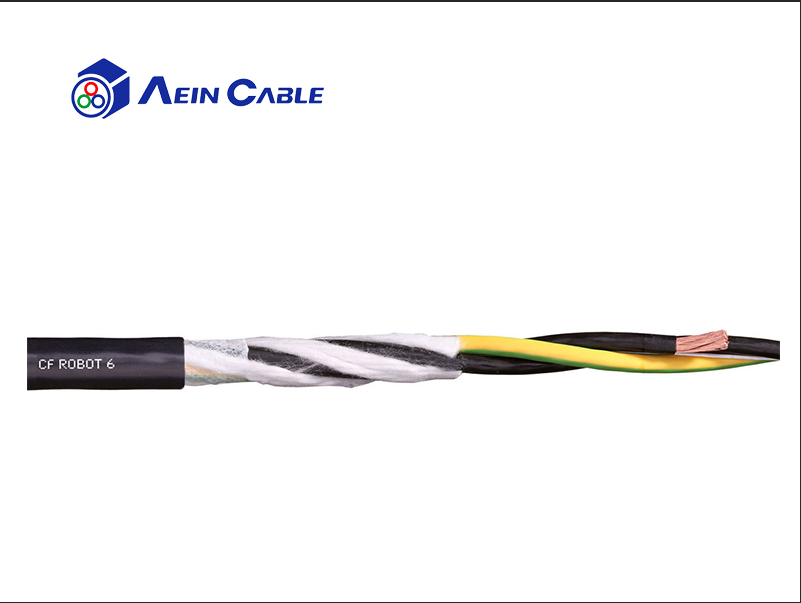

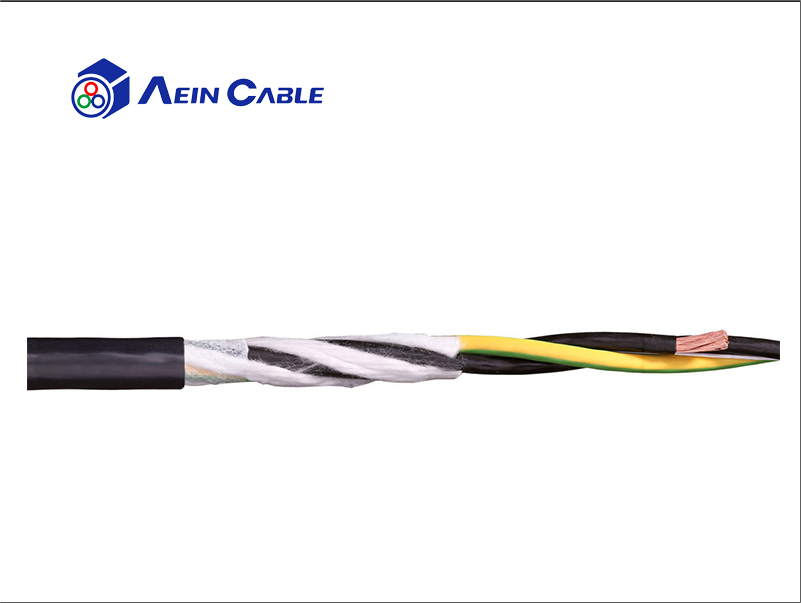

Alternative IGUS Motor Cable CFROBOT6

Typical application areas

For heavy duty applications with torsion movements

Almost unlimited resistance to oil, also with bio-oils

Indoor and outdoor applications, UV resistant

Especially for robots and 3D movements, handling, lead screw drives

inquiry

Product introduction

01 Product application
- - For heavy duty applications with torsion movements

    Almost unlimited resistance to oil, also with bio-oils

    Indoor and outdoor applications, UV resistant

    Especially for robots and 3D movements, handling, lead screw drives
02 Product characteristics •Conform to RoHS standard
•UV resistance
•Flame retardant acc. to CSA C22.2 No.2556-15 FT2
•Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
•Strong tolerance to oils, coolants and lubricants
03 Technical certification
•Conform to UL&CUL standard UL758,CSA C22.2 No. 210

•Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure

	Min. bend radius, e-chain® (factor)	10.0 x d
	Min. bend radius, e-chain®	7.3 inch (185.0 mm)
	Min. bend radius, flexible (factor)	8.0 x d
	Min. bend radius, flexible	5.8 inch (148.0 mm)
	Min. bend radius, fixed (factor)	5.0 x d
	Min. bend radius, fixed	3.6 inch (92.5 mm)
	Temperature, e-chain® min.	-13 °F (-25 °C)
	Temperature, e-chain® max.	176 °F (80 °C)
	Temperature, flexible	-40 °F to +176 °F (-20 °C to +80 °C)
	Temperature, fixed	-58 °F to 176 °F (-50 °C to 80 °C)
	v max. twisted	180 °/m
	a max.twisted	60 °/s²
	Length of travel	Robots and motions in 3D area, Class 1
	Torsion	± 180°, with 1 m cable length

	Conductor	Fine-wire stranded conductor in especially bending-resistant version consisting of bare copper wires (according to DIN EN 60228)
	Conductor insulation	Mechanically high-quality TPE mixture
	Unshielded	Yes
	Outer jacket	Low-adhesion, halogen-free, highly abrasion-resistant mixture on the basis of PUR, adapted to suit the requirements in energy chains® (following DIN EN 50363-10-2).
	Conductor identification	Power cores: Cores black with white numerals, one core green-yellow.
	Jacket color	Steel blue (similar to RAL 5011)
