Location： Home > Product > By Alternative Brand > IGUS CABLE > Alternative IGUS CFFLAT Motor Cable

Product introduction

01 Product application
- - For heavy duty applications with torsion movements

    Almost unlimited resistance to oil, also with bio-oils

    Indoor and outdoor applications, UV resistant

    Unsupported travel distances and up to 328.1 ft (100 m) for gliding applications

    Storage and retrieval equipment, small installation spaces, small radii, machining equipment/machine tools, quick handling, clean room, semiconductor assembly, low-temperature applications
02 Product characteristics •Conform to RoHS standard
•UV resistance
•Flame retardant acc. to CSA C22.2 No.2556-15 FT2
•Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
•Strong tolerance to oils, coolants and lubricants
03 Technical certification
•Conform to UL&CUL standard UL758,CSA C22.2 No. 210

•Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

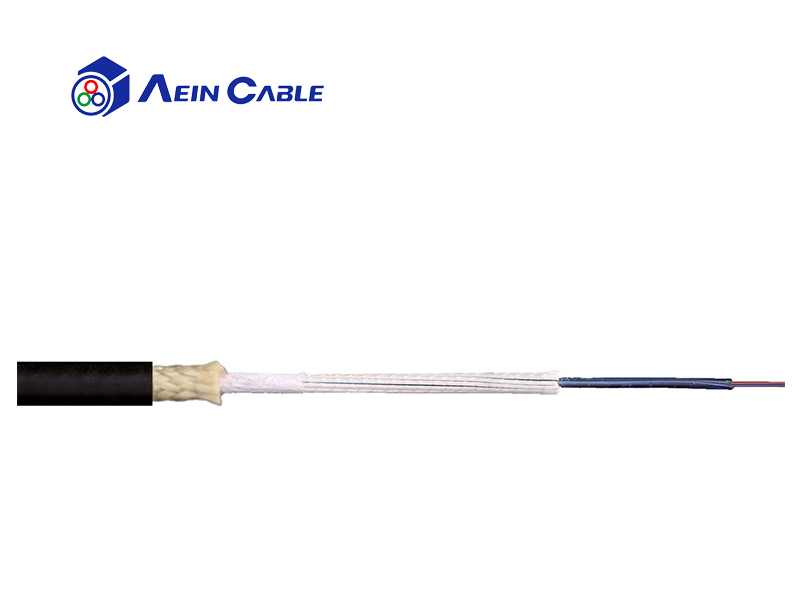

Product structure

	Min. bend radius, e-chain® (factor)	5.0 x d
	Min. bend radius, e-chain®	1.1 inch (27.5 mm)
	Min. bend radius, flexible (factor)	4.0 x d
	Min. bend radius, flexible	0.9 inch (22.0 mm)
	Min. bend radius, fixed (factor)	3.0 x d
	Min. bend radius, fixed	0.6 inch (16.5 mm)
	Temperature, e-chain® min.	-31 °F (-35 °C)
	Temperature, e-chain® max.	194 °F (90 °C)
	Temperature, flexible	-58 °F to 194 °F (-50 °C to +90 °C)
	Temperature, fixed	-67°F to +176°F (-55°C to +80°C) (following DIN EN 50305)
	v max. unsupproted	33 ft/s (10 m/s)
	a max.	6328.1 ft/s² (100 m/s²)
	Length of travel	Travels up to 328 ft (100 m)

	Conductor	Highly flexible braided special conductor
	Conductor insulation	Mechanically high-quality TPE mixture
	Unshielded	No
	Outer jacket	Low-adhesion mixture on the basis of TPE, especially abrasionresistant and highly flexible, adapted to suit the requirements in e-chains®.
	Jacket color	Steel blue (similar to RAL 5001)
