Location： Home > Product > By Alternative Brand > TKD CABLE > Alternative TKD KSM-S (N)SHTÖU, (N)SHTÖU+FO Installation Cable

Product introduction

01 Product application reeling cable for winding operation, especially with simultaneously tensile stress and/or torsional stress and/or forced cable guidance. Suitable for dry, humid and wet rooms, for outdoor use and also on construction sites, in commercial and agricultural plants.
02 Product characteristics•free from lacquer damaging substances and silicone (during production) •for travelling speed up to 180 m / min
•where excessive stress, particularly high dynamic tensile force may be expected, e. g. as a result of high acceleration figures, the permissible stress limits have to be determinated individually.
•failure-free data transmission via FO
03 Technical certification
•conform to RoHS •conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

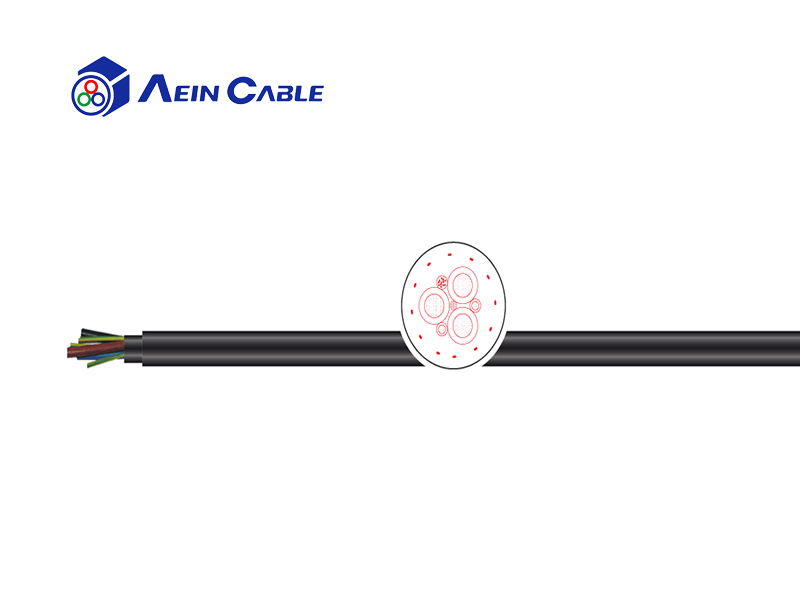

Product structure

Conductor material:	Bare copper strand; FO: Graded index-fibre 62,5/125 µ
Conductor class:	Acc. to DIN VDE 0295 class 5 resp. IEC 60228 cl. 5
Core insulation:	Rubber compound; FO: with jelly filled PETP tubes in an envelope of a special rubber compound
Core identification:	Acc. to VDE 0293-308 coloured and GNYE
Overall stranding:	Cores stranded in layer, splitted earth conductors and FO element in the interstices
Inner sheath material:	Special rubber-compound
Outer sheath:	Special rubber-compound
Sheath colour:	Black
Rated voltage:	Uo/U: 0,6/1 kV
Testing voltage:	2,5 kV
Current-carrying-capacity:	Acc. to DIN VDE, see Technical Guideline
Min. bending radius fixed:	Acc. to DIN VDE 0298 part 3
Min. bending radius moved:	Acc. to DIN VDE 0298 part 3
Operat. temp. fixed min/max:	-40 °C / +80 °C
Operat. temp. moved min/max:	-40 °C / +80 °C
Temp. at conductor:	+90 °C
Burning behavior:	Self-extinguishing and flame retardant acc. to IEC 60332-1
Resistant to oil:	Acc. to EN 60811-404
Tensile strength:	Tensile strength max. 20 N / mm²
