Product introduction
  • 01 Product application
        • For heavy duty applications
        • Light oil resistance
        • Preferably indoor applications, but also outdoor ones at temperatures > 41.0 °F (5 °C)
        • Especially for unsupported travels and gliding travels up to 328.1 ft (100 m)
        • Storage and retrieval units for high-bay warehouses, machining units/packaging machines, quick handling, indoor cranes


  • 02 Product characteristics •Conform to RoHS standard
    •UV resistance
    •Flame retardant acc. to CSA C22.2 No.2556-15 FT2
    •Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
    •Strong tolerance to oils, coolants and lubricants
  • 03 Technical certification

    Conform to  UL&CUL standard UL758,CSA C22.2 No. 210

    •Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

    •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

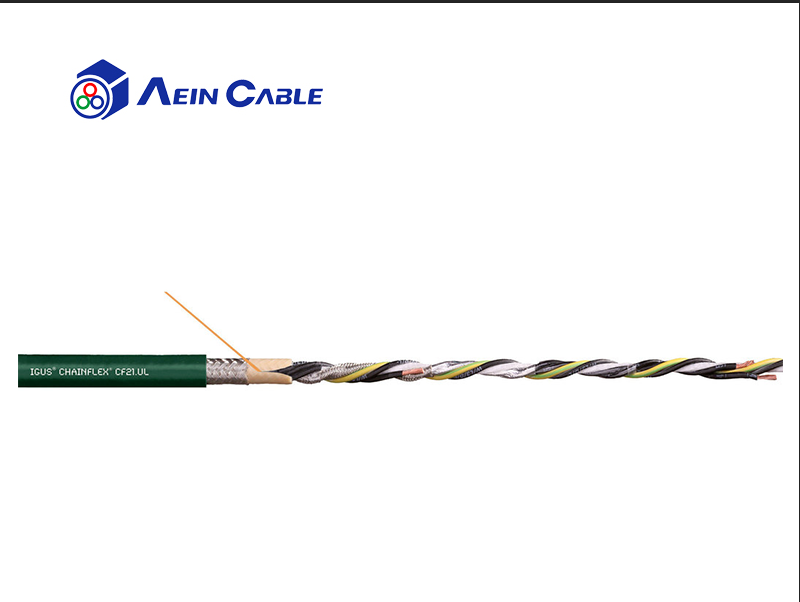

Product structure
Dynamic information

Min. bend radius, e-chain® (factor)

7.5 x d

Min. bend radius, e-chain®

3.4 inch (86.3 mm)

Min. bend radius, flexible (factor)

6 x d

Min. bend radius, flexible

2.7 inch (69.0 mm)

Min. bend radius, fixed (factor)

4 x d

Min. bend radius, fixed

1.8 inch (46.0 mm)

Temperature, e-chain® min.

41 °F (5 °C)

Temperature, e-chain® max.

158 °F (70 °C)

Temperature, flexible

+23 °F to +158 °F (-5 °C to +70 °C)

Temperature, fixed

+5°F to +158°F (-15°C to +70°C)(following DIN EN 50305)

max. unsupported

33 ft/s (10 m/s)

v max. gliding
7 ft/s (2 m/s)

a max.

262.5 ft/s² (80 m/s²)

Length of travel

Travels up to 328 ft (100 m)

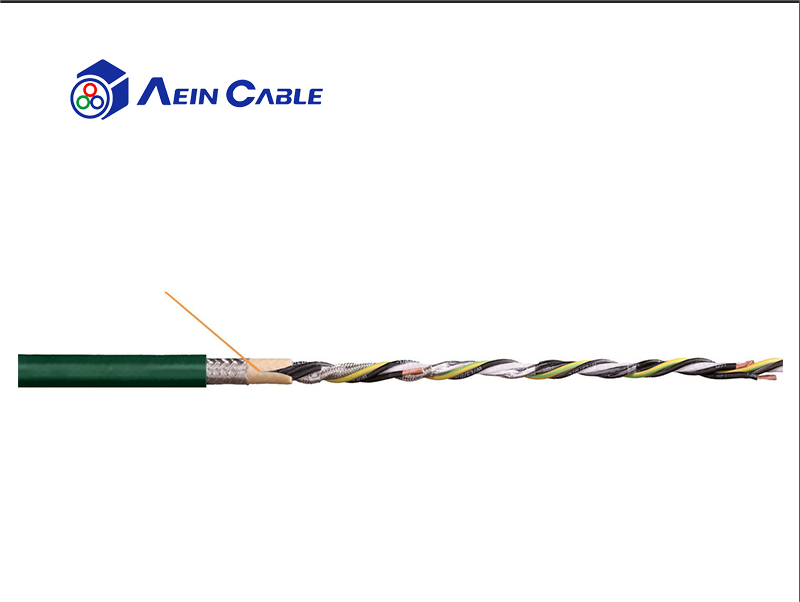

Cable structure

Conductor

Fine-wire stranded conductor in especially bending-resistant version consisting of bare copper wires (according to DIN EN 60228)

Conductor insulation

Mechanically high-quality, especially low-capacitance TPE mixture

Overall shield

Extremely bending-resistant braiding made of tinned copper wires. Coverage approx. 70% linear, approx. 90% optical.



Unshielded

No

Outer jacket

Low-adhesion, halogen-free, highly abrasion-resistant mixture on the basis of PVC, adapted to suit the requirements in energy chains® (following DIN EN 50363-10-2).


Inner jacket PVC mixture suited to the requirements in e-chains®


Jacket color

Moss green(similar to RAL 6005)
