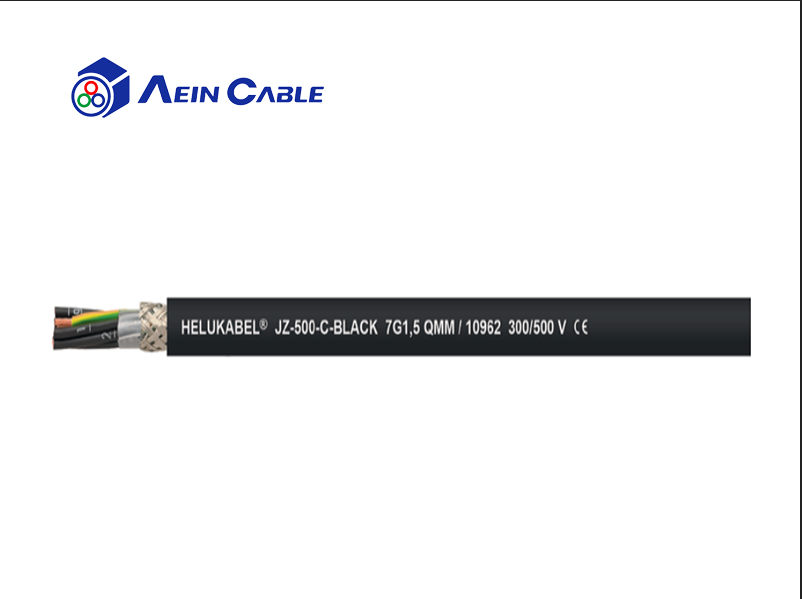

Location： Home > Product > By Alternative Brand > HELUKABEL > Alternative Helukabel JZ-500-C-BLACK / OZ-500-C-BLACK Flexible Screened Cable

hot keywords：

Product introduction

01 Product application
- - Used for flexible applications involving medium mechanical stress with free movement, without tensile stress and without forced motion control in dry, damp and wet rooms, as well as outdoors. Used as a connection and control cable in machine and plant construction, in machine tools, production lines, assembly lines and conveyor belts. EMC= Electromagnetic Compatibility; in order to optimise EMC properties, we recommend a double-sided and all-round large contact area of the copper braiding.
02 Product characteristics • resistant to: UV radiation, weathering effects • largely resistant to: oil, for details, see "Technical Information" •for outdoor use• The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers
03 Technical certification
• flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332- 1-2 / IEC 60332-1-2 • weather-resistant acc. to DIN EN ISO 4892-2 •UV-resistant acc. to DIN EN ISO 4892-2

Product structure

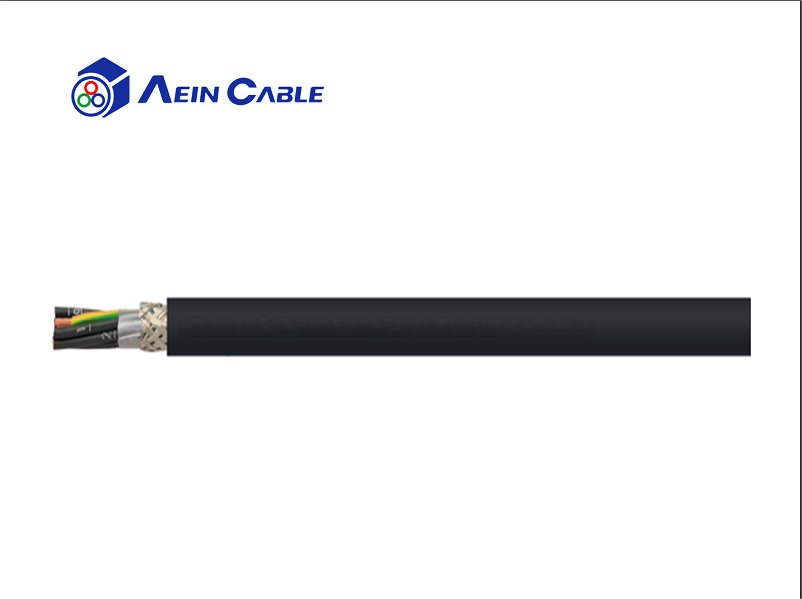

Cable structure

	Conductor	Bare copper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5
	Conductor insulation	Core insulation: PVC, compound type Z 7225
	Identification	Core identification acc. to DIN VDE 0293-334, black cores with consecutive labeling in white digits
	Protective conductor	starting with 3 cores, G = with protective conductor GN-YE, in the outer layer, x = without protective conductor (OZ)
	Stranding	Cores stranded in layers with optimal lay lengths
	Screen	Foil wrapping •1 core(s): helically wound tinned copper wires, approx. coverage 85 % 2 - 100 core(s): braided screen of tinned copper wires, approx. coverage 85 %
	Outer jacket	PVC acc. to DIN VDE 0207-363-4-1 / DIN EN 50363-4-1 (compound type TM2)
	Jacket color	Black (RAL 9005)
	Length marking	in meters
