Location： Home > Product > By Alternative Brand > TKD CABLE > Alternative TKD JB/OB-YCY Power Cable 0,6/1kV

Product introduction

01 Product application power, control and connecting cable in electrical facilities for lossless data and signal transmission, fixed laying and flexible applications without tensile stress and without defined cable routing. Suitable for use in dry, humid and wet rooms. Outdoor use only with UV-protection, no laying underground
02 Product characteristics•largely resistant to acids, bases and specified types of oil •additional mechanical protection by inner sheath• EMC compliant shielding
03 Technical certification
•conform to RoHS •conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

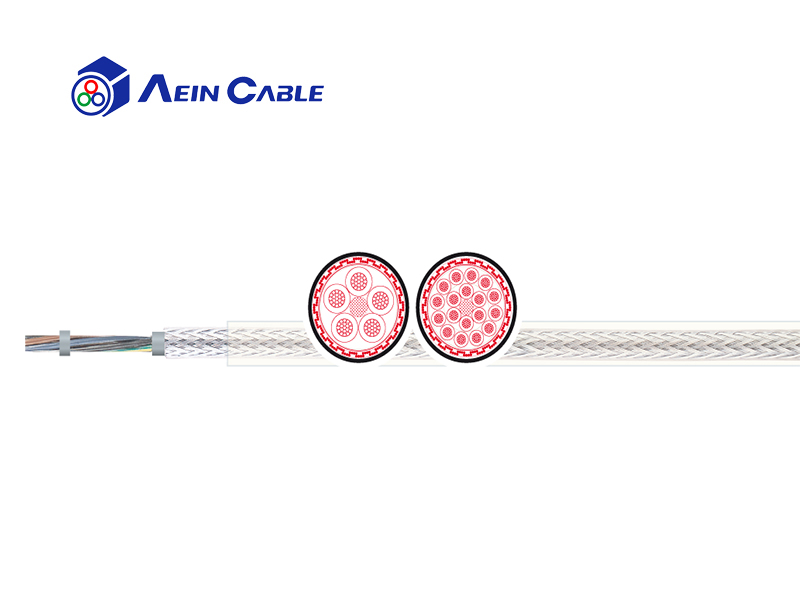

Product structure

Conductor material:	Bare copper strand
Conductor class:	Acc. to IEC 60228 cl. 5
Core insulation:	PVC
Core identification:	Coloured: up to 5 cores acc. to DIN VDE 0293-308; from 6 cores TKD colour code (see technical guideline); G: with GNYE
Stranding:	Stranded in layers
Inner sheath material:	PVC
Shield3:	Copper braid tinned, coverage approx. 85 %
Outer sheath:	PVC
Sheath colour:	Transparent
Rated voltage:	Uo/U: up to 16mm² 300/500V,from 25mm² 0,6/1kV
Testing voltage:	4 kV
Conductor resistance:	Acc. to IEC 60228 cl. 5
Insulation resistance:	Min. 20 MΩ x km
Current-carrying-capacity:	Acc. to DIN VDE, see technical Guidelines
Min. bending radius fixed:	6 x d
Min. bending radius moved:	15 x d
Operat. temp. fixed min/max:	-40 °C / +80 °C
Operat. temp. moved min/max:	-15 °C / +70 °C
Temp. at conductor:	+70 °C in operation; +150 °C in case of short-circuit
Burning behavior:	Self-extinguishing & flame-retardant acc.to IEC 60332-1
