Product introduction

01 Product application twisted pair shielded electronic cable for data and signal transmission for increased requirements in drag chains, in electrical motion facilities, machine and plant engineering in the field of crane and conveyor facilities in dry and humid rooms also outdoor.
02 Product characteristics•resistant to oil acc. to DIN EN 60811-404, 4 h at +100 °C
•UV, Ozone and weather resistant acc. EN 50396 and HD 605 S2 •resistant to coolant fluids, microbes, hydrofluoric acid, salt acid and weakened sulfuric
•immune at contact with bio oil, grease, waxing and whose emulsion on herbal, animal or synth. base •NEW: with Ripcord, for faster and core protected dismantling
• NEW: up from prodcution date August 2016 with UL/CSA-approval
• NEW: with Rip Cord, for faster and core protected dismantling
03 Technical certification
•conform to RoHS •conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

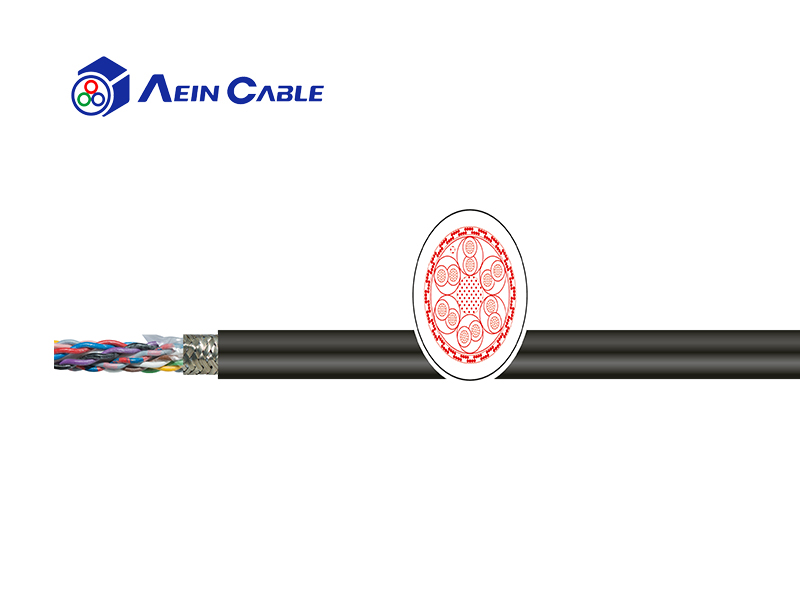

Product structure

Conductor material:	Bare copper strand
Conductor class:	Acc. to DIN VDE 0295 cl. 6 resp. IEC 60228 cl. 6
Core insulation:	PELON®2
Core identification:	≤ 0,75 mm² acc. DIN 47100, > 0,75 mm² BK with WH numerals
Overall stranding:	Pairs stranded around tensile strength center, opt. lay length
Inner sheath material:	TPE, with Rip cord
Shield3:	Copper braid tinned, opt. coverage min. 85 %
Outer sheath:	TPE
Sheath colour:	Black (RAL 9005)
Rated voltage:	300/300 V / ≥ 0,75 mm² 1.000 V (UL)
Testing voltage:	1.500 V / 3.000 V
Conductor resistance:	At +20 °C acc. to DIN VDE 0295 cl. 6/IEC 60228 cl. 6
Min. bending radius fixed:	5 x d
Min. bending radius moved:	10 x d
Operat. temp. fixed min/max:	-40 °C / +100 °C (UL: 90 °C)
Operat. temp. moved min/max:	-25 °C / +100 °C (UL: 90 °C)
Burning behavior:	Acc. to IEC 60332-1, cable flame test, FT1
Approvals:	UL/CSA - cURus 90 °C, 1.000 V (≥ 0,75 mm²)
Speed:	Self-supporting: max. 10 m/s, gliding: max. 5 m/s
Acceleration:	Max. 100 m/s²
