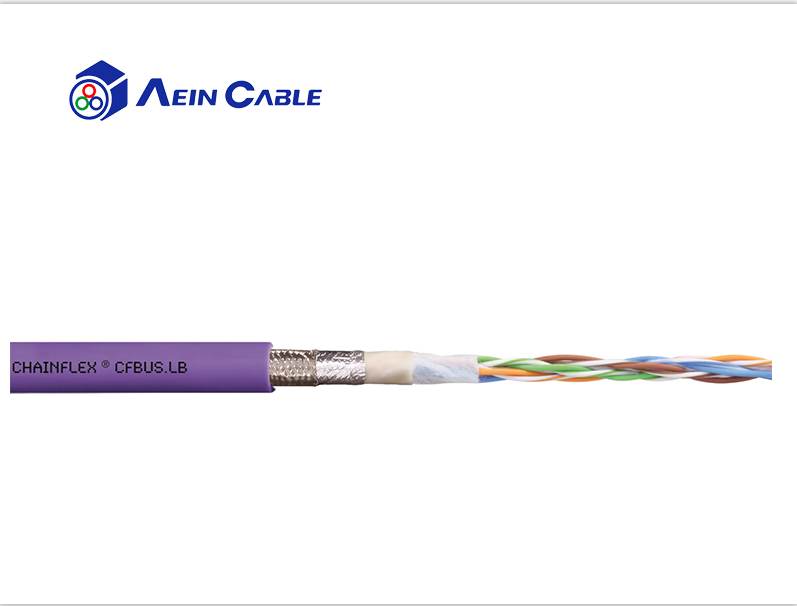

Location： Home > Product > By Alternative Brand > IGUS CABLE > Alternative IGUS Cable Motor Cable CFBUS.LB

Product introduction

01 Product application
- - For heaviest duty applications
  - Almost unlimited resistance to oil
  - Indoor and outdoor application wiithout direct sun radiation
  - Unsupported and gliding travel distances up to 400 m and more for gliding applications, Class 6
  - Bus connection cable for storage and retrieval equipment, machining units/machine tools, quick handling, cleanroom, semiconductor insertion, indoor cranes, low-temperature applications
02 Product characteristics •Conform to RoHS standard
•UV resistance
•Flame retardant acc. to CSA C22.2 No.2556-15 FT2
•Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
•Strong tolerance to oils, coolants and lubricants
03 Technical certification
•Conform to UL&CUL standard UL758,CSA C22.2 No. 210

•Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

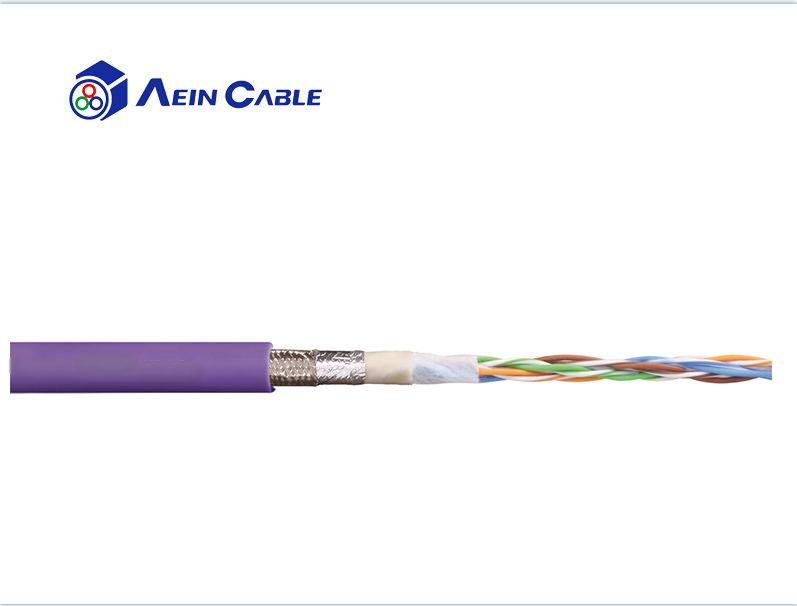

Product structure

	Min. bend radius, e-chain® (factor)	7.5 x d
	Min. bend radius, e-chain®	1.9 inch (48.8 mm)
	Min. bend radius, flexible (factor)	6.0 x d
	Min. bend radius, flexible	1.5 inch (39 mm)
	Min. bend radius, fixed (factor)	4.0 x d
	Min. bend radius, fixed	1.0 inch (26 mm)
	Temperature, e-chain® min.	-31 °F (-35 °C)
	Temperature, e-chain® max.	158 °F (70 °C)
	Temperature, flexible	-58 °F to +158 °F (-50 °C to +70 °C) (following EN 60811-504)
	Temperature, fixed	-67 °F to 158 °F (-50 °C to 70 °C) (following DIN EN 50305)
	v max. twisted	33 ft/s (10 m/s)
	a max., twisted	328.1 ft/s² (100 m/s²)
	Length of travel	Travels up to 1312 ft and more (400 m and more)
	Torsion	± 180°, with 1 m cable length

	Conductor	Fine-wire stranded conductor in bending-resistant version consisting of bare copper wires (according to DIN EN 60228)
	Conductor insulation	Mechanically high-quality TPE mixture (According to bus specification)
	Overall shield	Extremely bending-resistant braiding made of tinned copper wires. Coverage approx. 70% linear, approx. 90% optical.
	Unshielded	No
	Outer jacket	Low-adhesion, halogen-free, highly abrasion-resistant mixture on the basis of PUR, adapted to suit the requirements in energy chains® (following DIN EN 50363-10-2).
	Jacket color	red lilac (similar to RAL 4001)
