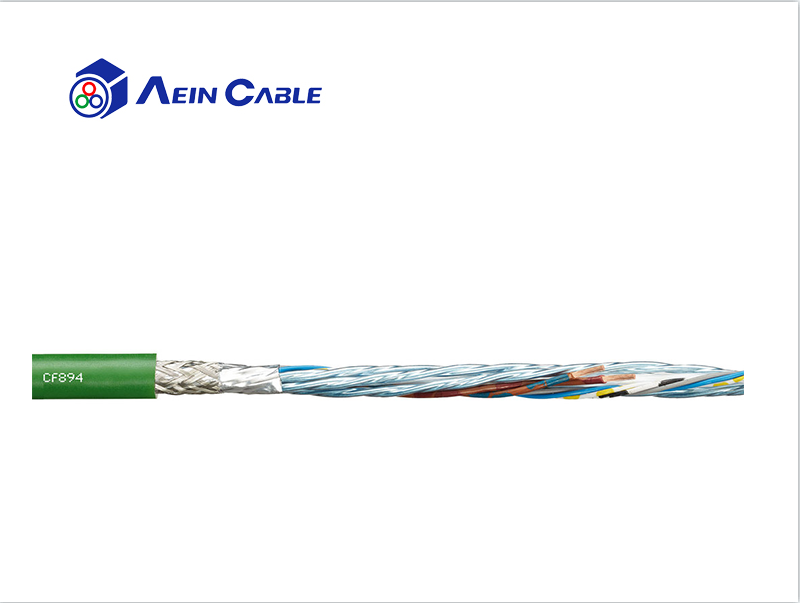

Location： Home > Product > By Alternative Brand > IGUS CABLE > Alternative IGUS Cable Servo Motor Feedback Cable CF894

Product introduction

01 Product application
- - For flexing applications

    With influence of oil

    Indoor and outdoor applications without direct solar radiation

    Especially for unsupported travels

    Machining units/machine tools, low temperature applications
02 Product characteristics •Conform to RoHS standard
•UV resistance
•Flame retardant acc. to CSA C22.2 No.2556-15 FT2
•Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
•Strong tolerance to oils, coolants and lubricants
03 Technical certification
•Conform to UL&CUL standard UL758,CSA C22.2 No. 210

•Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure

	Min. bend radius, e-chain® (factor)	15 x d
	Min. bend radius, e-chain®	4.7 inch (120.0 mm)
	Min. bend radius, flexible (factor)	12 x d
	Min. bend radius, flexible	3.8 inch (96mm)
	Min. bend radius, fixed (factor)	8 x d
	Min. bend radius, fixed	2.5 inch (64mm)
	Temperature, e-chain® min.	-4 °F (-20 °C)
	Temperature, e-chain® max.	176 °F (80 °C)
	Temperature, flexible	-40 °F to +176 °F (-20 °C to +80 °C)
	Temperature, fixed	-58°F to +176°F (-50°C to +80°C)
	v max. unsupproted	16 ft/s (5 m/s)
	v max. gliding	10 ft/s (3 m/s)
	a max., twisted	65.6 ft/s² (20 m/s²)
	Length of travel	Travels up to 33 ft (10 m)

	Conductor	Conductor consisting of bare copper wires (according to DIN EN 60228)
	Conductor insulation	Mechanically high-quality TPE mixture (According to bus specification)
	Overall shield	Bending-resistant braiding made of tinned copper wires. Coverage approx. 55% linear, approx. 80% optical.
	Unshielded	No
	Outer jacket	Low-adhesion, halogen-free, highly abrasion-resistant mixture on the basis of iguPUR, adapted to suit the requirements in energy chains®
	Jacket color	Yellow-green (similar to RAL 6018)
