Location： Home > Product > By Alternative Brand > IGUS CABLE > Alternative IGUS CFTHERMO Thermocouple Cable

Product introduction

01 Product application
- - For heavy duty applications with torsion movements

    Almost unlimited resistance to oil

    Indoor and outdoor applications with average sun radiation

    Unsupported travel distances and up to 164 ft (50 m) for gliding applications

    Machining centres / machine tools, storage and retrieval systems, packaging industry, handling, refrigerating areas
02 Product characteristics •Conform to RoHS standard
•UV resistance
•Flame retardant acc. to CSA C22.2 No.2556-15 FT2
•Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
•Strong tolerance to oils, coolants and lubricants
03 Technical certification
•Conform to UL&CUL standard UL758,CSA C22.2 No. 210

•Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

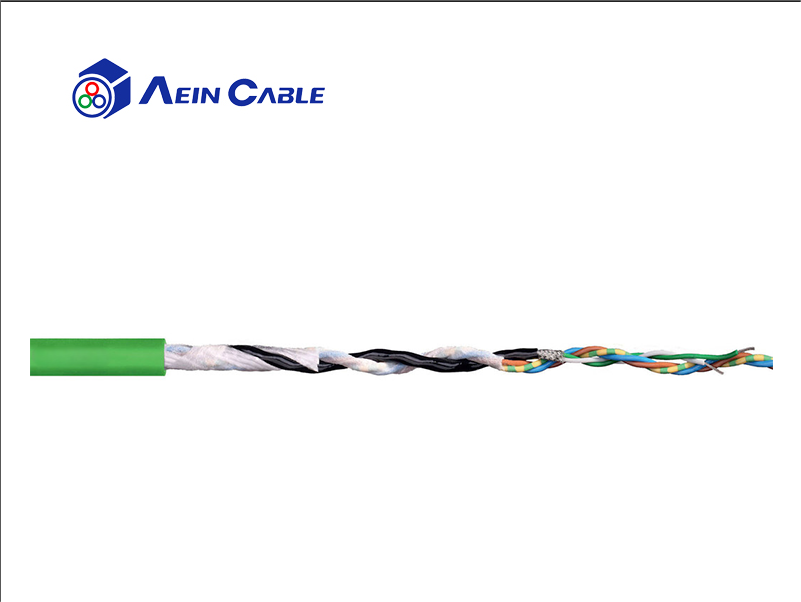

Product structure

	Min. bend radius, e-chain® (factor)	12.5 x d
	Min. bend radius, e-chain®	2.7 inch (68.8 mm)
	Min. bend radius, flexible (factor)	10.0 x d
	Min. bend radius, flexible	2.2 inch (55.0 mm)
	Min. bend radius, fixed (factor)	5.0 x d
	Min. bend radius, fixed	1.1 inch (27.5 mm)
	Temperature, e-chain® min.	-13 °F (-25 °C)
	Temperature, e-chain® max.	176 °F (80 °C)
	Temperature, flexible	-40°F to +176°F (-60°C to +80°C)
	Temperature, fixed	-58°F to +176°F (-50°C to +80°C)
	v max. unsupported	7 ft/s (2 m/s)
	a max.	65.6 ft/s² (20 m/s²)
	Length of travel	Travels up to 164 ft (50 m)

	Conductor	Conductor made of highly flexible special alloy
	Conductor insulation	Mechanically high-quality TPE mixture
	Overall shield	Extremely bending-resistant braiding made of tinned copper wires. Coverage approx. 70% linear, approx. 90% optical.
	Unshielded	No
	Outer jacket	Low adhesion, highly abrasion resistant mixture on the basis of PUR, adapted to suit the requirements in e-chains® (According to DIN EN 50363-10-2)
	Jacket color	Jet black (similar to RAL 9005)
