Product introduction
  • 01 Product application
    • Typical application areas

       For flexing applications With influence of oil

       Indoor and outdoor applications without direct solar radiation

       Especially for unsupported travels

       Machining units/machine tools, low temperature applications


  • 02 Product characteristics •Conform to RoHS standard
    •UV resistance
    •Flame retardant acc. to CSA C22.2 No.2556-15 FT2
    •Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
    •Strong tolerance to oils, coolants and lubricants
  • 03 Technical certification

    Conform to  UL&CUL standard UL758,CSA C22.2 No. 210

    •Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

    •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure
Dynamic information

Min. bend radius, e-chain® (factor)

12.5 x d

Min. bend radius, e-chain®

3.0 inch (75.0 mm)

Min. bend radius, flexible (factor)

10.0 x d

Min. bend radius, flexible

2.4 inch (60.0 mm)

Min. bend radius, fixed (factor)

7.0 x d

Min. bend radius, fixed

1.7 inch (42.0 mm)

Temperature, e-chain® min.

-4 °F (-20 °C)

Temperature, e-chain® max.

176 °F (80 °C)

Temperature, flexible

-40 °F to +176 °F (-20 °C to +80 °C)

Temperature, fixed

-58°F to +176°F (-50°C to +80°C)

v max., unsupported

10 ft/s (3 m/s)

a. max.

65.6 ft/s² (20 m/s²)

Length of travel

Unsupported up to 33 ft (10 m)

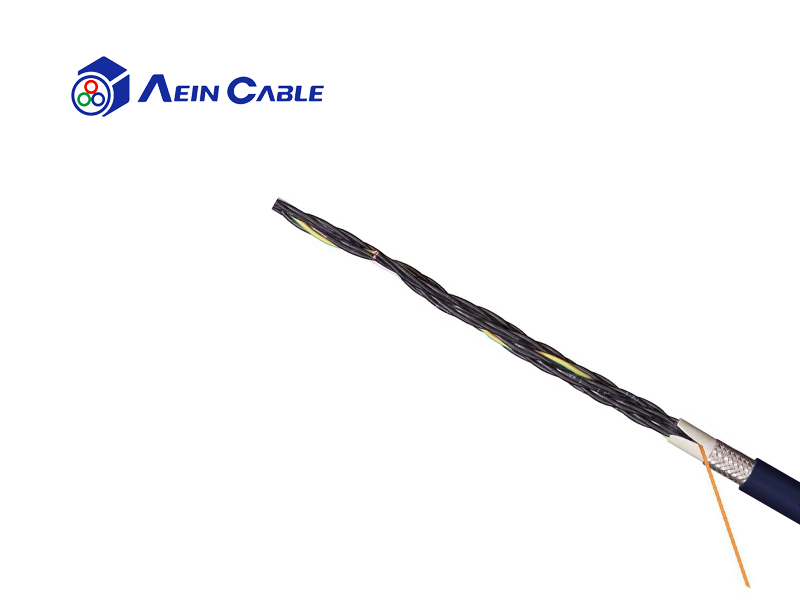

Cable structure

Conductor

Conductor consisting of bare copper wires (according to DIN EN 60228)

Conductor insulation

Mechanically high-quality, PVC mixture

Conductor construction

Cores stranded in optimized pitch

Conductor identification

Cores black with white numerals, one core green-yellow

Overall shield

Braid made of tinned copper wires. Shield about 60% optical.



Unshielded

No

Outer jacket

Low adhesion mixture on the basis of iguPUR, adapted to suit the requirements in e-chains®



Jacket color

Jet black (similar to RAL 9005)
