Product introduction

01 Product application
- - Used as a connection and control cable in machine tools, assembly lines and conveyor belts, production lines, plant construction, heating and air-conditioning technology and in smelters and steel mills. Suitable for flexible applications involving medium mechanical stress with free movement, without tensile stress and without forced motion control in dry, damp and wet rooms, as well as outdoors (fixed installation). May not be laid directly in soil (suitable for direct burial starting with an outer diameter of 20 mm) or water. Due to its extended nominal voltage range and good UV resistance, this cable is primarily used in Southern Europe, Arabic, Asian and Eastern countries. Due to the high screening density, interference-free transmission of signals or pulses is ensured. EMC= Electromagnetic Compatibility; in order to optimise EMC properties, we recommend a double-sided and all-round large contact area of the copper braiding.
02 Product characteristics • resistant to: UV radiation, weathering effects • for outdoor use • largely resistant to: oil, for details, see "Technical Information" • The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers
03 Technical certification
• flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332- 1-2 / IEC 60332-1-2 • UV-resistant acc. to DIN EN ISO 4892-2 • weather-resistant acc. to DIN EN ISO 4892-2

Product structure

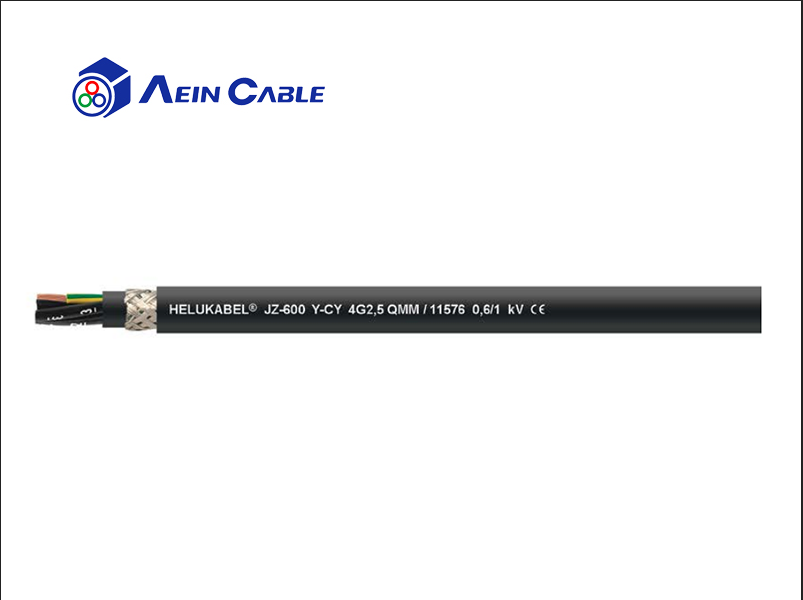

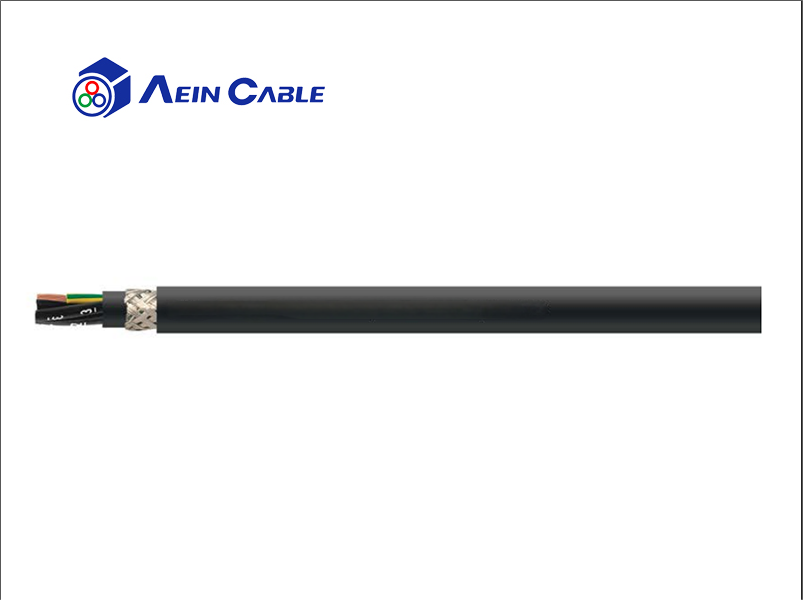

Cable structure

	Conductor	Copper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5
	Conductor insulation	PVC acc. to DIN VDE 0207-363-3 / DIN EN 50363-3 (compound type TI2)
	Identification	Core identification acc. to DIN VDE 0293-334, black cores with consecutive labeling in white digits
	Protective conductor	starting with 3 cores, G = with protective conductor GN-YE, in the outer layer, x = without protective conductor (OZ)
	Stranding	Cores stranded in layers with optimal lay lengths
	Screen	braided screen of tinned copper, approx. coverage 85%
	Inner sheath	PVC
	Outer jacket	PVC acc. to DIN VDE 0207-363-4-1 / DIN EN 50363-4-1 (compound type TM2)
	Jacket color	Black (RAL 9005)
	Length marking	in meters
