Product introduction
  • 01 Product application
      Typical application areas
      • For heaviest duty applications
      • Almost unlimited resistance to oil, also with bio-oils
      • Indoor and outdoor applications, UV resistant
      • Unsupported and gliding travel distances up to 1,312 ft (400 m) and more
      • Storage and retrieval units for high-bay warehouses, machining units/machine tools, quick handling, cleanroom, semiconductor insertion, outdoor cranes, low-temperature applications
  • 02 Product characteristics •Conform to RoHS standard
    •UV resistance
    •Flame retardant acc. to CSA C22.2 No.2556-15 FT2
    •Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
    •Strong tolerance to oils, coolants and lubricants
  • 03 Technical certification

    Conform to  UL&CUL standard UL758,CSA C22.2 No. 210

    •Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

    •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure
Dynamic information

Min. bend radius, e-chain® (factor)

6.8 x d

Min. bend radius, e-chain®

1.6 inch (40.8 mm)

Min. bend radius, flexible (factor)

5.0 x d

Min. bend radius, flexible

1.2 inch (30.0 mm)

Min. bend radius, fixed (factor)

4.0 x d

Min. bend radius, fixed

0.9 inch (24.0 mm)

Temperature, e-chain® min.

-31 °F (-35 °C)

Temperature, e-chain® max.

212 °F (100 °C)

Temperature, flexible

-31°F to +212°F (-35°C to +100°C)

Temperature, fixed

-48°F to +212°F (-55°C to +100°C)

v max., unsupported

33 ft/s (10 m/s)

v max. gliding

20 ft/s (6 m/s)

a. max.

328.1 ft/s² (100 m/s²)

Length of travel

Travels up to 1312 ft and more (400 m and more)

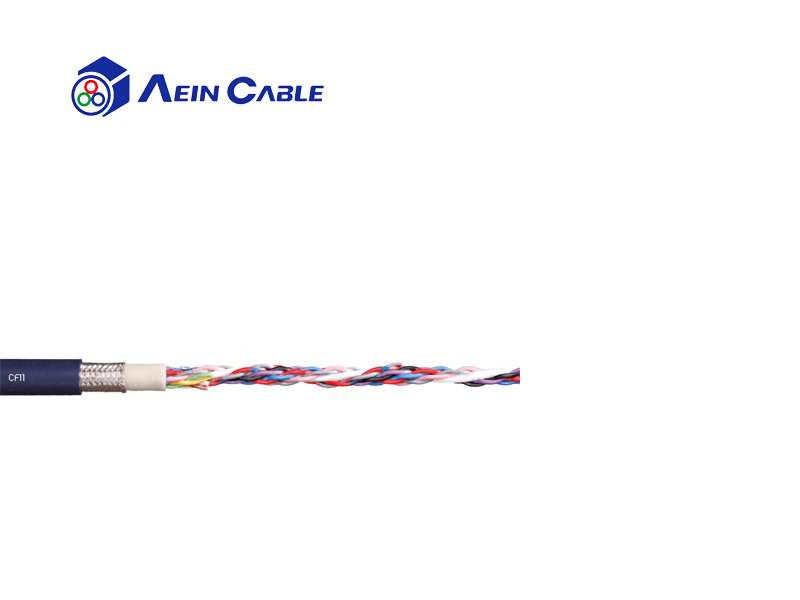

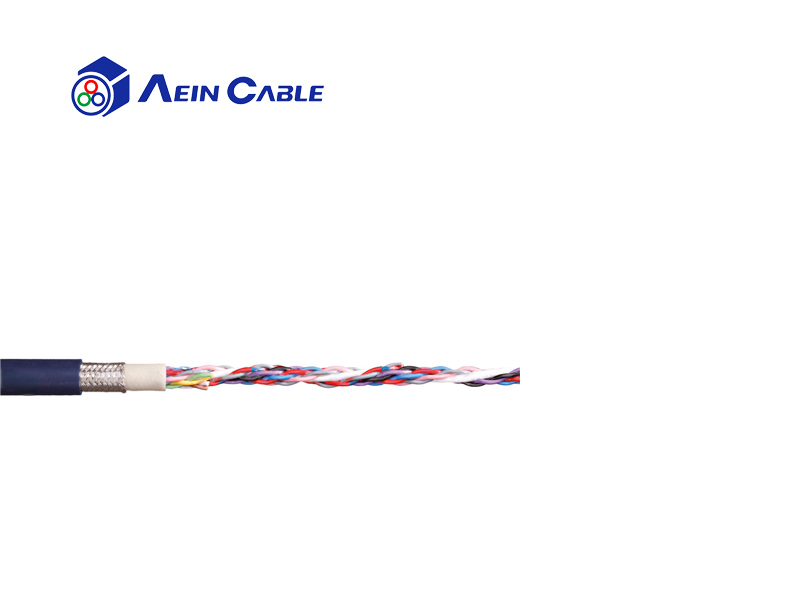

Cable structure

Conductor

Fine-wire stranded conductor in especially bending-resistant version consisting of bare copper wires (according to DIN EN 60228)

Conductor insulation

Mechanically high-quality TPE mixture

Conductor construction

2 cores each stranded in pairs with short pitch lengths, core pairs also stranded with short pitch lengths.

Conductor identification

Colour code according to DIN 47100

Inner jacket

TPE mixture suited to the requirements in e-chains®

Overall shield

Extremely bending-resistant braiding made of tinned copper wires. Coverage approx. 70% linear, approx. 90% optical.



Unshielded

No

Outer jacket

Low adhesion, especially abrasion resistant and highly bending resistant mixture on the basis of TPE, adapted to suit the requirements in e-chains®



Jacket color

Steel blue (similar to RAL 5011)
