Location： Home > Product > By Alternative Brand > IGUS CABLE > Alternative IGUS PUR Hybrid Cable for axis 7 of CFSPECIAL-792 Robots

Product introduction

01 Product application
- - Reliable e-chain® cable for the seventh robot axis

    Electrical characteristics in line with KUKA (.011) and ABB (.012)
02 Product characteristics •Conform to RoHS standard
•UV resistance
•Flame retardant acc. to CSA C22.2 No.2556-15 FT2
•Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
•Strong tolerance to oils, coolants and lubricants
03 Technical certification
•Conform to UL&CUL standard UL758,CSA C22.2 No. 210

•Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

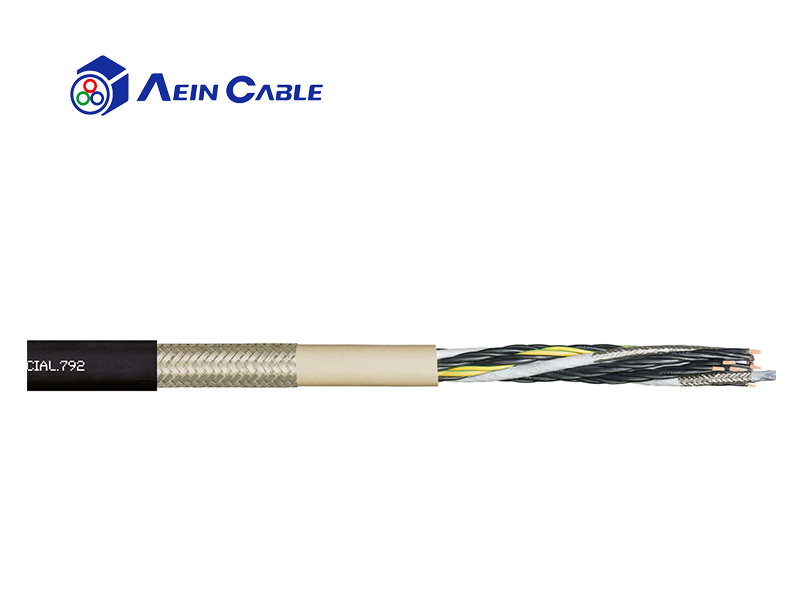

Product structure

	Min. bend radius, e-chain® (factor)	10.0 x d
	Min. bend radius, e-chain®	10.4 inch (265.0 mm)
	Min. bend radius, flexible (factor)	8.0 x d
	Min. bend radius, flexible	8.3 inch (212.0 mm)
	Min. bend radius, fixed (factor)	5.0 x d
	Min. bend radius, fixed	5.2 inch (132.5 mm)
	Temperature, e-chain® min.	-13 °F (-25 °C)
	Temperature, e-chain® max.	176 °F (80 °C)
	Temperature, flexible	-40°F to +176°F (-20°C to +80°C)
	Temperature, fixed	-58°F to +176°F (-50°C to +80°C)
	v max. unsupported	10 ft/s (3 m/s)
	v max. gliding	7 ft/s (2 m/s)
	a max.	328.1 ft/s² (100 m/s²)
	Length of travel	For hanging applications up to 328 ft (10 m)

	Conductor	Fine-wire stranded conductor consisting of bare copper wires (according to DIN EN 60228)
	Conductor insulation	Mechanically high-quality TPE mixture
	Overall shield	Bending-resistant braiding made of tinned copper wires.
	Unshielded	No
v	Overall shield	Yes
	Outer jacket	Low adhesion, highly abrasion resistant mixture on the basis of PUR, adapted to suit the requirements in e-chains® (According to DIN EN 50363-10-2)
	Inner jacket	TPE mixture suited to the requirements in e-chains®
	Jacket color	Jet black (similar to RAL 9005)
