Product introduction
  • 01 Product application
        • For medium duty use
        • Light oil resistance
        • Preferably indoor applications, but also outdoor ones at temperatures > 41.0 °F (5 °C)
        • Unsupported travel distances and up to 32.81 ft (10 m) for gliding applications
        • Wood/stone processing, packaging industry, supply systems, handling, adjusting equipment


  • 02 Product characteristics •Conform to RoHS standard
    •UV resistance
    •Flame retardant acc. to CSA C22.2 No.2556-15 FT2
    •Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
    •Strong tolerance to oils, coolants and lubricants
  • 03 Technical certification

    Conform to  UL&CUL standard UL758,CSA C22.2 No. 210

    •Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

    •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

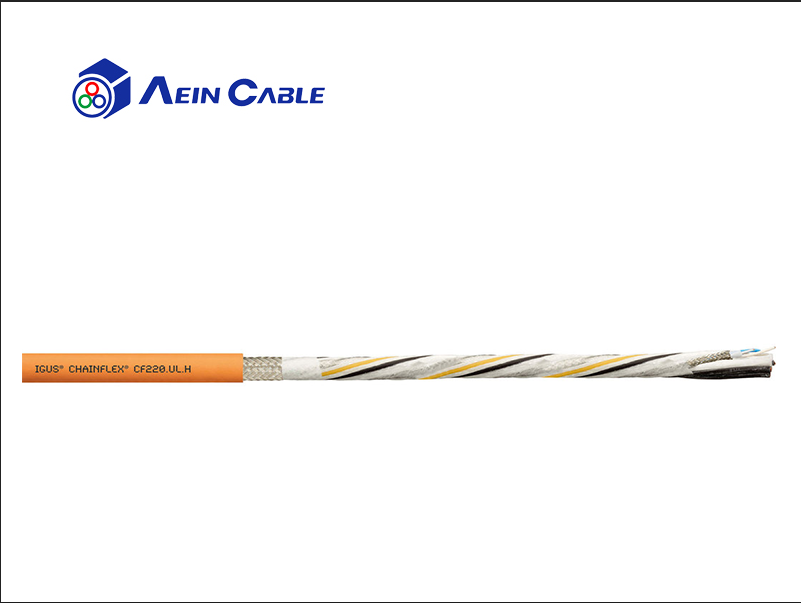

Product structure
Dynamic information

Min. bend radius, e-chain® (factor)

10.0 x d

Min. bend radius, e-chain®

3.7 inch (95.0 mm)

Min. bend radius, flexible (factor)

8 x d

Min. bend radius, flexible

3.0 inch (76.0 mm)

Min. bend radius, fixed (factor)

5 x d

Min. bend radius, fixed

1.9 inch (47.5 mm)

Temperature, e-chain® min.

41 °F (5 °C)

Temperature, e-chain® max.

158 °F (70 °C)

Temperature, flexible

+23 °F to +158 °F (-5 °C to +70 °C)

Temperature, fixed

+5°F to +158°F (-15°C to +70°C)(following DIN EN 50305)

max. unsupported

33 ft/s (10 m/s)

v max. gliding
7 ft/s (2 m/s)

a max.

164.0 ft/s² (50 m/s²)

Length of travel

Travels up to 33 ft (10 m)

Cable structure

Conductor

Fine-wire stranded conductor in especially bending-resistant version consisting of bare copper wires (according to DIN EN 60228)

Conductor insulation

Mechanically high-quality, especially low-capacitance TPE mixture

Overall shield

Bending-resistant braiding made of tinned copper wires. Coverage approx. 55% linear, approx. 80% optical.



Unshielded

No

Outer jacket

Low-adhesion, halogen-free, highly abrasion-resistant mixture on the basis of PVC, adapted to suit the requirements in energy chains® (following DIN EN 50363-10-2).


Inner jacket PVC mixture suited to the requirements in e-chains®


Jacket color

Pastel orange (similar to RAL 2003)
