Location： Home > Product > By Alternative Brand > TKD CABLE > Alternative TKD ServoDriveQ C-PVC UL/CSA Cable

Product introduction

01 Product application For transmitting digital signals for various drive components to DRIVE-CLiQ® interfaces, with a transfer rate up to 100Mbit/s. Suitable for use in dry and humid rooms. Outdoor use only with UV-protecftion.
02 Product characteristics•flame retardant •oil resistant acc. to IEC 60811-2-1•free from lacquer damaging substances and silicone (during production) • HF-characteristics Cat.5e acc. to IEC 61156-6•see appendix - KAWEFLEX® ServoDriveQ ... application parameters - •due to 300V UL/CSA approval parallel laying with other 300V cables is permitted
•NEW: up from production date Jan. 2016, approbation UL/CSA, 300 V, 80 °C (OLD: 30 V, 80 °C)
03 Technical certification
•conform to RoHS •conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

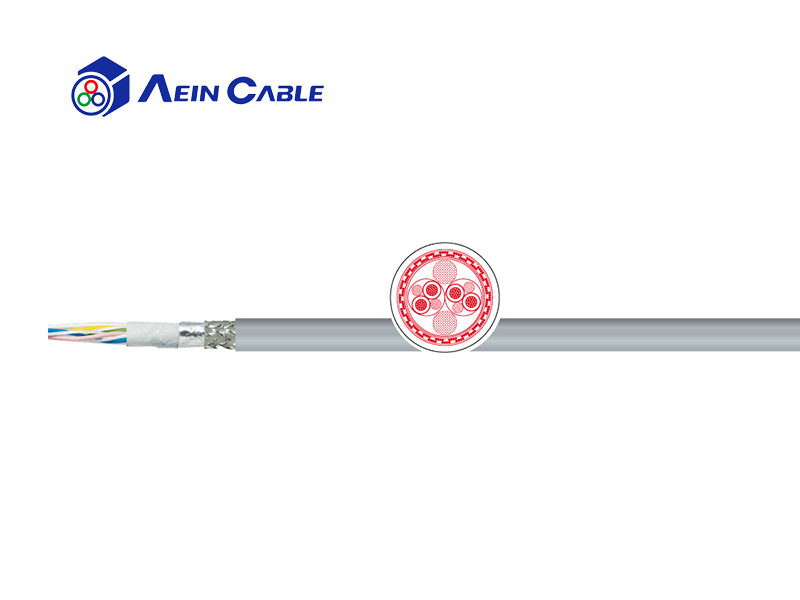

Product structure

Conductor material:	Bare copper
Conductor class:	7-wires
Core insulation:	Foam Polyethylen
Core identification:	GN/YE, PK/BU
Stranding:	Cores and fillers twisted to pairs
Overall stranding:	2 pairs stranded with fillers
Shield3:	Alu-clad PET foil, metalside with contact to braid, cover.100%,tinned copper braid, opt.cover. ≥85%
Outer sheath:	PVC
Sheath colour:	Grey, RAL 7032
Outer diameter:	Ca. 6,85 mm
Rated voltage:	Max. 300 V
Testing voltage:	500 V
Conductor resistance:	AWG24 max. 87,6 Ω/km
Insulation resistance:	At 20 °C ≥ 1 GΩ/km
Capacity:	Nom. 50 nF/km at 800 Hz
Characteristic impedance:	100 ± 15 Ω from 1 to 100 MHz
Transfer rate:	100 Mbit/s
Min. bending radius fixed:	7,5 x d
Min. bending radius moved:	15 x d
Operat. temp. fixed min/max:	- 20 °C / +80 °C
