Product introduction
  • 01 Product application exclusively for use in self-protective circuits, as impulse and data transmission cable, control and connecting cable in process controlled facilities in measurement and control technology for lossless data and signal transmission. For fixed laying and flexible applications with undefined cable routing and without tensile stress. Suitable for use in dry and humid rooms. Outdoor use only with UV-protection, no laying underground.
  • 02 Product characteristicsfor intrinsically safe electric circuits protection class "i" acc. to VDE 0165 largely resistant to acids, bases and specified types of oil intrinsically safe systems are circuits where no spark and no thermic effect in normal operation or in failure can ignite explosive surrounding areas. These products are intended for use within <50 V AC resp. <75 V DC voltage. Therefore they are not subject to the EU Low Voltage Directive.

  • 03 Technical certification

    conform to RoHS conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

     •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

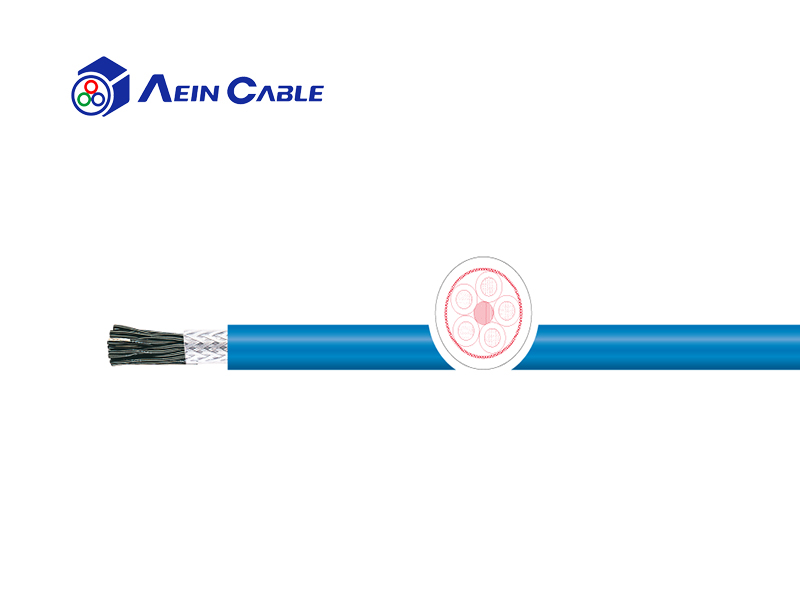

Product structure

Conductor material: Bare copper strand
Conductor class: Acc. to IEC 60228 cl. 5
Core insulation: PVC
Core identification: Acc. to DIN VDE 0293 black cores with white numerals but without GNYE
Stranding: Stranded in layers
Shield3: Copper braid tinned; coverage approx. 85%
Outer sheath: PVC
Sheath colour: Blue, RAL 5015
Rated voltage: Uo/U: 300/500 V (see special features)
Testing voltage: 3 kV
Conductor resistance: Acc. to IEC 60228 cl. 5
Insulation resistance: Min. 20 MΩ x km
Current-carrying-capacity: Acc. to DIN VDE, s. Techn. Guidelines
Capacity: Core/core ca. 120 nF/km; core/shield ca. 160 nF/km
Min. bending radius fixed: Up to 12 mm Ø 5 x d; > 12 mm Ø 7,5 x d
Min. bending radius moved: Up to 12 mm Ø 10 x d; up to 20 mm Ø 15 x d; > 20 mm Ø 20 x d
Operat. temp. fixed min/max: -30 °C / +80 °C
Operat. temp. moved min/max: -5 °C / +70 °C
Burning behavior: Self-extinguishing & flame-retardant acc.to IEC 60332-1
Standard: Similar to DIN VDE 0812
