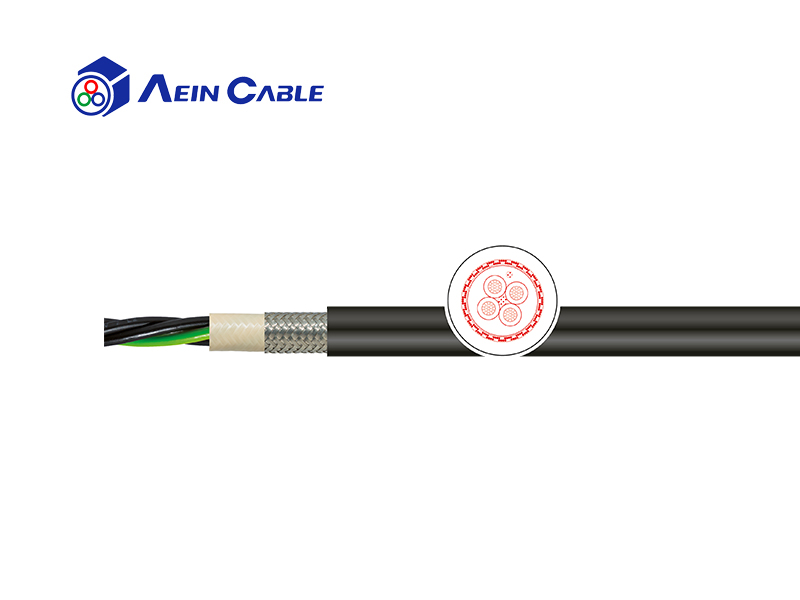

Conductor material:
|
Bare copper strand
|
Conductor class:
|
Super fine wires acc. to DIN VDE 0295 cl. 6 resp. IEC 60228 cl. 6
|
Core insulation:
|
TPE
|
Core identification:
|
BK with WH numerals, one core GNYE 1.core: U / L1 / C / L+ *** 2.core: V / L2 3.core: W / L3 / D / L- *** 4.core: 4 / N
|
Stranding:
|
Cores stranded in opt. lay length around tensile strength center
|
Inner sheath material:
|
TPE, with Rip cord
|
Shield3:
|
Copper braid tinned, opt. coverage appr. 85 %
|
Outer sheath:
|
TPE
|
Sheath colour:
|
Black, RAL 9005
|
Rated voltage:
|
600/1.000 V
|
Testing voltage:
|
4.000 V
|
Min. bending radius fixed:
|
4 x d
|
Min. bending radius moved:
|
7,5 x d
|
Operat. temp. fixed min/max:
|
-50 °C / +90 °C
|
Operat. temp. moved min/max:
|
-40 °C / +90 °C
|
Burning behavior:
|
Acc. to IEC 60332-1, cable flame test, FT1
|
Approvals:
|
UL/CSA - cURus 80°C, 1000 V
|
Speed:
|
Self-supporting: max. 10 m/s, gliding: max. 6 m/s
|
Acceleration:
|
Max. 80 m/s²
|
