Product introduction
  • 01 Product application
    • Typical application areas

      • For medium duty use
      • Without influence of oil
      • Preferably indoor applications
      • Unsupported travel distances and up to 164 ft (50 m) for gliding applications
      • Wood/stone processing, packaging industry, supply systems, handling, adjusting equipment
  • 02 Product characteristics •Conform to RoHS standard
    •UV resistance
    •Flame retardant acc. to CSA C22.2 No.2556-15 FT2
    •Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
    •Strong tolerance to oils, coolants and lubricants
  • 03 Technical certification

    Conform to  UL&CUL standard UL758,CSA C22.2 No. 210

    •Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

    •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

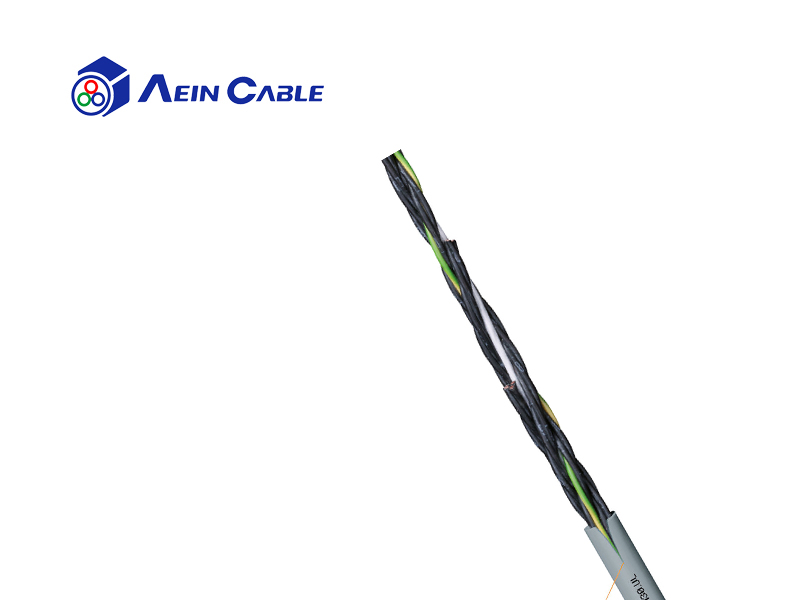

Product structure
Dynamic information

Min. bend radius, e-chain® (factor)

7.5 x d

Min. bend radius, e-chain®

1.5 inch (37.5 mm)

Min. bend radius, flexible (factor)

6.0 x d

Min. bend radius, flexible

1.2 inch (30.0 mm)

Min. bend radius, fixed (factor)

4.0 x d

Min. bend radius, fixed

0.8 inch (20.0 mm)

Temperature, e-chain® min.

41 °F (5 °C)

Temperature, e-chain® max.

158 °F (70 °C)

Temperature, flexible

+23 °F to +158 °F (-5°C to +70°C)

Temperature, fixed

+5 °F to +158 °F (-15 °C to +70 °C) (following DIN EN 50305)

v max., unsupported

10 ft/s (3 m/s)

v max. gliding

7 ft/s (2 m/s)

a. max.

65.6 ft/s² (20 m/s²)

Length of travel

Travels up to 164 ft (50 m)

Torsion

±90°, with 1 m cable length


Cable structure

Conductor

Fine-wire stranded conductor consisting of bare copper wires (according to DIN EN 60228)

Conductor insulation

Mechanically high-quality TPE mixture

Conductor construction

Conductors stranded in short pitch in one position

Conductor identification

Colour code according to DIN 47100



Unshielded

Yes

Outer jacket

Low adhesion mixture on the basis of PVC, adapted to suit the requirements in e-chains® (According to EN50363-4-1)



Jacket color

Silver grey (similar to RAL 7001)

CFRIP®

Quickly stripping: CFRIP® tear strip at outer jacket
