Product introduction

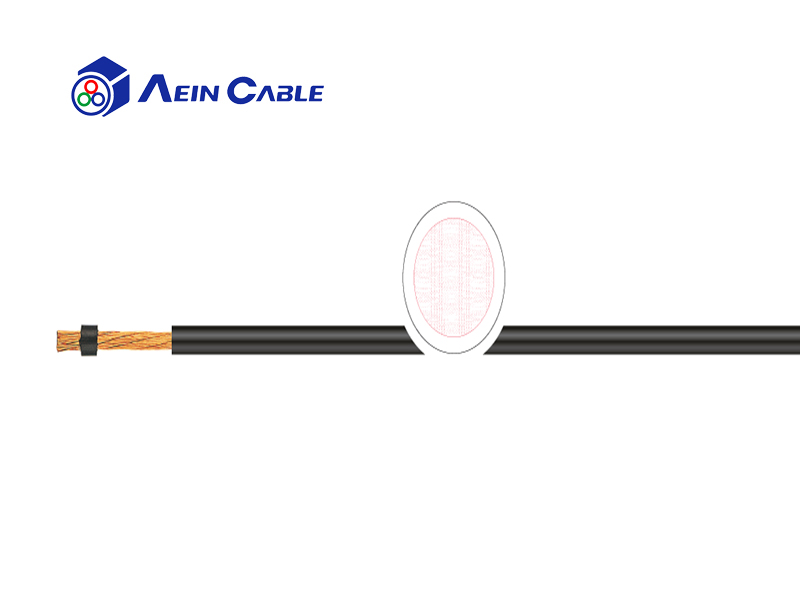

01 Product application high flexible single core, in combination with high flexible insulting tube useable in and on mobile equipment and measureing suitable
02 Product characteristics•superfine stranded copper wire •low-temperature flexible by very soft special core insulation•LABS-free (during production) •2 versions: HIGHFLEX LIFY measuring core: 1000 V; HIGHFLEX LIFY; up to 1,0mm² 500 V, from 1,5mm² 750 V
03 Technical certification
•conform to RoHS •conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure

Conductor material:	Bare copper strand
Conductor class:	Ultra-fine stranded: 0,05; 0,07 or 0,10 mm
Core insulation:	PVC
Core identification:	Single-coloured standard core colours available: green-yellow, black, red, blue
Rated voltage:	1.000 V for HIGHFLEX LIFY measuring core; 500 V for HIGHFLEX LIFY highflexible up to 1mm² and 750 V from 1,5 mm²
Testing voltage:	3 kV
Insulation resistance:	Min. 20 MΩ x km
Current-carrying-capacity:	Acc. to DIN VDE, see Technical Guidelines
Min. bending radius fixed:	6 x d
Min. bending radius moved:	10 x d
Operat. temp. fixed min/max:	-30 °C / +70 °C
Operat. temp. moved min/max:	-15 °C / +70 °C
