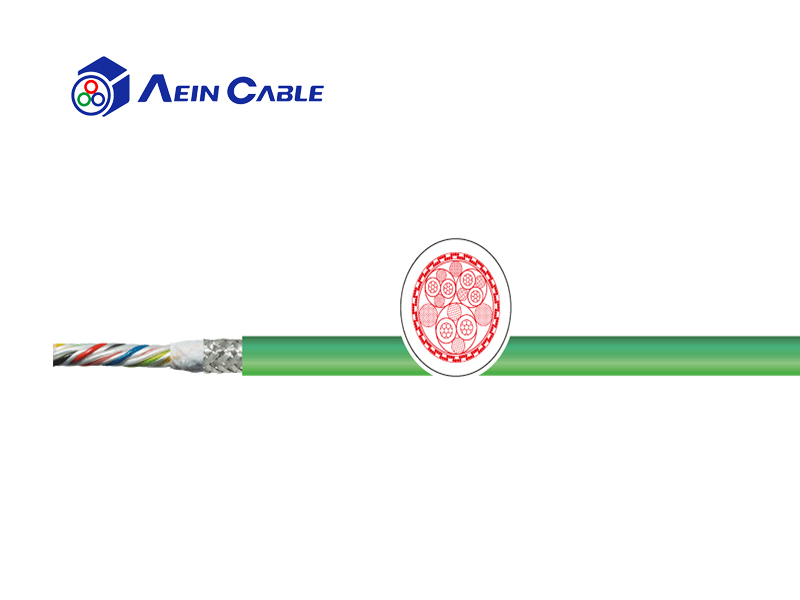

Alternative TKD LIFTTEC YMHY-KST PVC Control Cable

Good CableChoose AEIN for international markets!

187 0215 2883

Location： Home > Product > By Alternative Brand > TKD CABLE > Alternative TKD ServoDriveQ Plus SK-C-PUR Cable

Product introduction

01 Product application For use in highly dynamic applications in energy supply chains, with high electrical and mechanical requirements for controlling of various drive components on DRIVE-CLiQ ® interfaces and transmitting digital signals, with a transfer rate up to 100Mbit/s. Suitable for use in dry and humid rooms. Outdoor use only with UV-protection.
02 Product characteristics•halogen-free, flame retardant •oil resistant acc. to IEC 60811-2-1•free from lacquer damaging substances and silicone (during production) •approbation UL/CSA, 300V, 80°C •due to 300V UL/CSA approval parallel laying with other 300V cables is permitted•conform to DESINA
•HF-characteristics Cat.5e acc. to IEC 61156-6
03 Technical certification
•conform to RoHS •conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure

Conductor material:	Bare copper (AWG24), tinned copper (AWG22)
Conductor class:	19-wires
Core insulation:	Polyolefin
Core identification:	Pairs AWG24 GN/YE, PK/BU pair AWG22 RD/BK
Stranding:	Cores and fillers twisted to pairs
Overall stranding:	3 elements stranded with fillers
Shield3:	Alu-clad PET foil, metalside with contact to braid cover.100%, tinned copper braid, opt.cover. ≥85%
Outer sheath:	PUR
Sheath colour:	Green, RAL 6018
Outer diameter:	Ca. 6,9 mm
Rated voltage:	300 V
Testing voltage:	500 V
Conductor resistance:	AWG24 max. 95 Ω/km , AWG22 max. 55 Ω/km
Insulation resistance:	At 20 °C ≥ 1 GΩ/km
Capacity:	Data pairs: nom. 50 nF/km at 800 Hz
Characteristic impedance:	100 ± 15 Ω from 1 to 100 MHz
Transfer rate:	100 Mbit/s
Min. bending radius fixed:	35,0 mm
Min. bending radius moved:	75,0 mm
Operat. temp. fixed min/max:	- 40 °C / +80 °C
Operat. temp. moved min/max:	- 20 °C / +60 °C
Burning behavior:	Acc. to IEC60332-1, UL 1581 §1090, §1100 (FT2)
Approvals:	UL/CSA - cURus 300 V, 80°C
