Min. bend radius, e-chain® (factor)

10.0 x d

Min. bend radius, e-chain®

2.8 inch (70.0 mm)

Min. bend radius, flexible (factor)

8.0 x d

Min. bend radius, flexible

2.2 inch (56.0 mm)

Min. bend radius, fixed (factor)

5.0 x d

Min. bend radius, fixed

1.4 inch (35.0 mm)

Temperature, e-chain® min.

-13 °F (-25 °C)

Temperature, e-chain® max.

176 °F (80 °C)

Temperature, flexible

-40 °F to +176 °F (-20 °C to +80 °C)

Temperature, fixed

-58°F to +176°F (-50°C to +80°C)

v max., unsupported

33 ft/s (10 m/s)

v max. gliding

7 ft/s (2 m/s)

a. max.

164.0 ft/s² (50 m/s²)

Length of travel

Unsupported up to 33 ft (10 m)

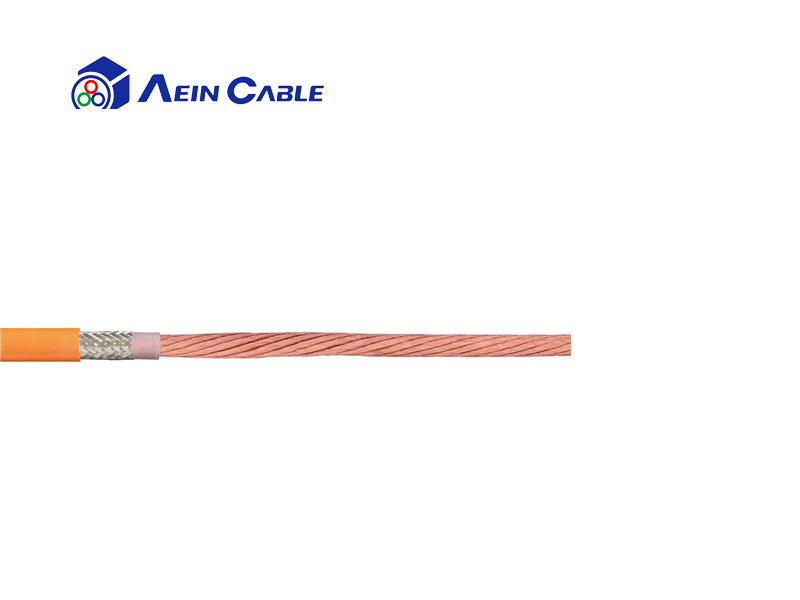

Conductor

Fine-wire stranded conductor in especially bending-resistant version consisting of bare copper wires (according to DIN EN 60228)

Conductor insulation

Mechanically high-quality, especially low-capacitance TPE mixture

Conductor construction

Power cores with control pair elements stranded with elements for high tensile stresses

Conductor identification

Cores black with white numerals

Element shield

Bending-resistant braiding made of tinned copper wires.

Intermediate layer

Foil taping over the external layer.

Overall shield

Bending-resistant braiding made of tinned copper wires. Coverage approx. 55% linear, approx. 80% optical.

Unshielded

No

Outer jacket

Low adhesion mixture on the basis of PUR, adapted to suit the requirements in e-chains® (According to DIN EN 50363-10-2)

Jacket color

Pastel orange (similar to RAL 2003)
