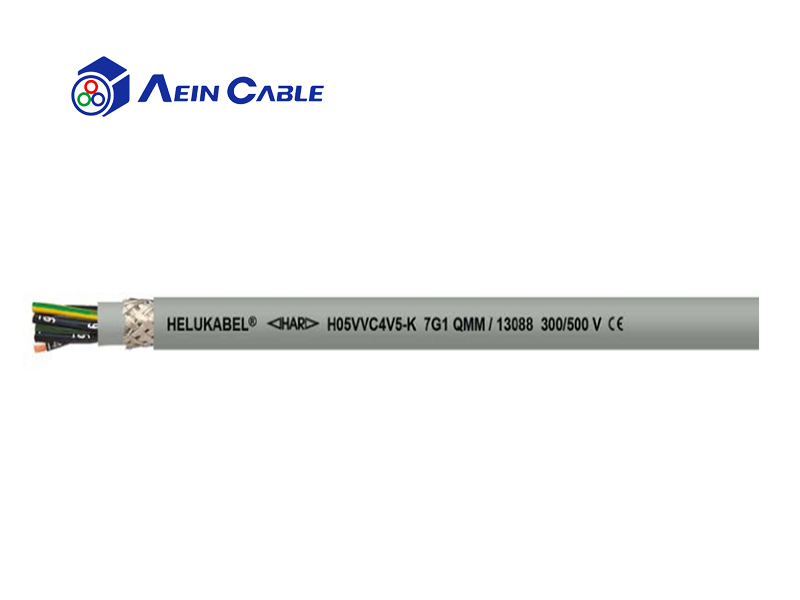

Location： Home > Product > By Alternative Brand > HELUKABEL > Alternative Helukabel H05VVC4V5-K Oil Resistant Screened Cable

hot keywords：

Product introduction

01 Product application
- - Used for flexible applications involving medium mechanical stress with free movement, without tensile stress and without forced motion control in dry, damp and wet rooms, however, not suitable for outdoor use as a connection cable in machine and machine tool construction, assembly lines, conveyers and production lines. Even various chemical compounds cannot harm the cable. As a cable suitable for damp rooms, it is also preferred for the operation of machines in breweries, bottling plants and car washes. For interference-free data signal transmission in measurement and control technology in case electromagnetic screening is required. The cables may engage in flexible movement after installation, provided the cables are not mechanically overloaded during the movements. These shielded cables are not designed for permanent bending stresses. EMC= Electromagnetic Compatibility; in order to optimise EMC properties, we recommend a double-sided and all-round large contact area of the copper braiding.
02 Product characteristics • largely resistant to: oil, for details, see "Technical Information" • The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers
03 Technical certification
• flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332- 1-2 / IEC 60332-1-2 • oil-resistant acc. to DIN VDE 0473-811-404 / DIN EN 60811-404 / IEC 60811-404 • certifications and approvals: EAC VDE-Reg.-No. 7032, valid for temperature range up to +70°C

Product structure

Cable structure

	Conductor	Copper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5
	Conductor insulation	PVC acc. to DIN VDE 0207-363-3 / DIN EN 50363-3 (compound type TI2)
	Identification	Core identification acc. to DIN VDE 0293-334, black cores with consecutive labeling in white digits
	Protective conductor	starting with 3 cores, G = with protective conductor GN-YE, in the outer layer, x = without protective conductor (OZ)
	Stranding	Cores stranded in layers with optimal lay lengths
	Screen	Screen: braided screen of tinned copper wires, approx. coverage 85%
	Inner sheath	PVC acc. to DIN VDE 0207-363-4-1 / DIN EN 50363-4-1 (compound type TM2)
	Outer jacket	Oil-resistant special PVC acc. to DIN VDE 0207-363- 4-1 / DIN EN 50363-4-1 (compound type TM5)
	Jacket color	Grey (RAL 7001)
	Length marking	in meters
