Product introduction
  • 01 Product application
      Typical application areas
      • For medium duty use
      • Almost unlimited resistance to oil
      • Indoor and outdoor applications with average sun radiation
      • Unsupported travel distances and up to 164 ft (50 m) for gliding applications
      • Machining centres / machine tools, storage and retrieval systems, packaging industry, handling, refrigerating areas
  • 02 Product characteristics •Conform to RoHS standard
    •UV resistance
    •Flame retardant acc. to CSA C22.2 No.2556-15 FT2
    •Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
    •Strong tolerance to oils, coolants and lubricants
  • 03 Technical certification

    Conform to  UL&CUL standard UL758,CSA C22.2 No. 210

    •Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

    •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

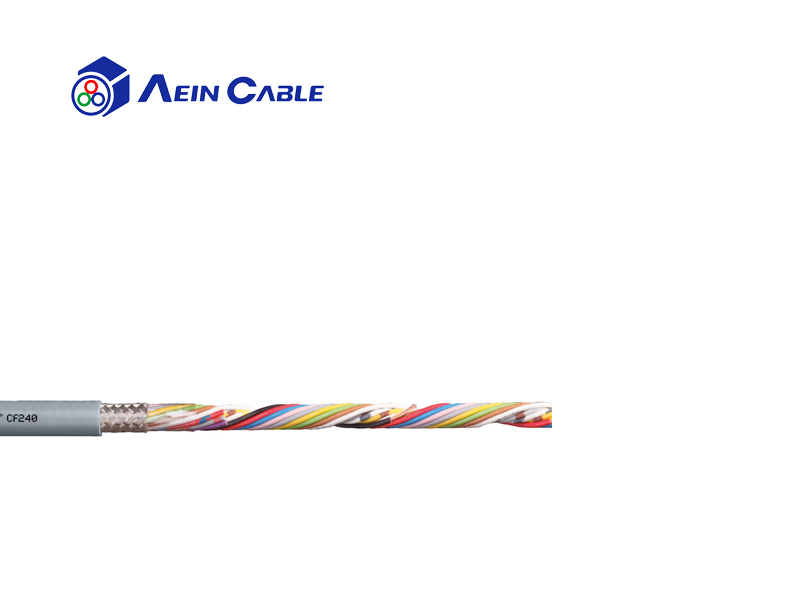

Product structure
Dynamic information

Min. bend radius, e-chain® (factor)

10.0 x d

Min. bend radius, e-chain®

2.4 inch (60.0 mm)

Min. bend radius, flexible (factor)

8.0 x d

Min. bend radius, flexible

1.9 inch (48.0 mm)

Min. bend radius, fixed (factor)

5.0 x d

Min. bend radius, fixed

1.2 inch (30.0 mm)

Temperature, e-chain® min.

-13 °F (-25 °C)

Temperature, e-chain® max.

176 °F (80 °C)

Temperature, flexible

-40 °F to +176 °F (-20 °C to +80 °C)

Temperature, fixed

-58°F to +176°F (-50°C to +80°C)

v max., unsupported

10 ft/s (3 m/s)

v max. gliding

7 ft/s (2 m/s)

a. max.

65.6 ft/s² (20 m/s²)

Length of travel

Travels up to 164 ft (50 m)


Cable structure

Conductor

Very finely stranded special cores of particularly high-flex design made of bare copper wires.

Conductor insulation

Mechanically high-quality TPE mixture

Conductor construction

Cores stranded in one layer with especially short pitch length

Conductor identification

Colour code according to DIN 47100

Intermediate layer

Foil taping over the external layer.

Overall shield

Extremely bending-resistant braiding made of tinned copper wires. Coverage approx. 70% linear, approx. 90% optical.



Unshielded

No

Outer jacket

Low-adhesion mixture on the basis of PUR, highly abrasion- and bending-resistant, adapted to suit the requirements in hanging  applications (following DIN EN 50363-10-2).



Jacket color

Window grey (similar to RAL 7040)
