Product introduction
  • 01 Product application shielded, low capacity hybrid cable for drag chain applications in electrical drive technology, as a connection cable servo controler and motor, in assembly and insertion machines, especially for the wet area of transfer lines or machine tools.
  • 02 Product characteristicslargely resistant to grease, coolant fluids and lubricants resistant to oil acc. to DIN EN 60811-2-1silicone-free (by productiuon) space and weight saving UV-resistant, halogen-free, low abrasion
    with the 1.000 V UL approval, the parallel laying with other cables that are equally approved for 1.000 V, is permittedconform to DESINA
  • 03 Technical certification

    conform to RoHS conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

     •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

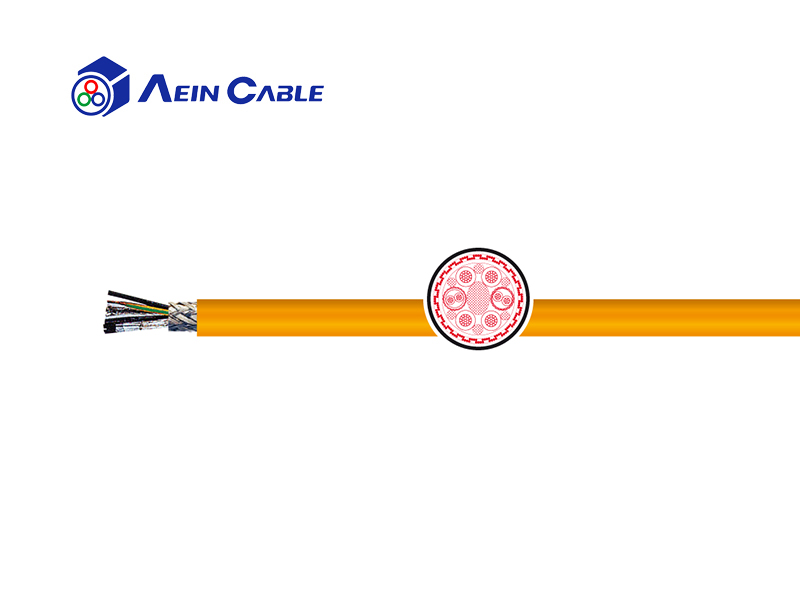

Product structure
Conductor material: Bare copper strand
Conductor class: Acc. to IEC 60228 cl. 6 col. 4
Core insulation: PELON®2
Core identification: BK with WH print U/L1/C/L+;V/L2;W/L3/D/L- & 1core GNYE; signalpair: WH,BU, controlpair (optional): BK with WH numerals 5+6
Shield: Signal pair/control pair: each pair shielded with tinned copper braid, optic. cover. appr. 85%
Overall stranding: Cores & elements stranded together
Shield3: Copper braid tinded, cover. appr. 85%
Outer sheath: PUR
Sheath colour: Orange, RAL 2003
Rated voltage: Power- & control cores: IEC: 0,6/1kV; UL/CSA: 1kV; signal pair: max. 300V
Testing voltage: Power- & control cores: 4 kV, signal pair: 1 kV
Conductor resistance: At +20 °C acc. to IEC 60228 cl. 6
Insulation resistance: At +20 °C ≥ 20 MΩ x km
Current-carrying-capacity: Acc. to DIN VDE
Characteristic impedance: Signal pair: approx. 100 Ohm
Transfer rate: 9.375 Mbaud until 100 m
Min. bending radius fixed: 5 x d
Min. bending radius moved: 7,5 x d < 10m TL | 10 x d ≥ 10m TL
Operat. temp. fixed min/max: -50°C / +80°C
Operat. temp. moved min/max: -40 °C / +80 °C
Burning behavior: Flame-retardant acc. to IEC 60332-1-2, FT1, VW-1
Approvals: UL/CSA - cURus 1.000 V, 80°C
Speed: Self-supporting: max. 5 m/s
Acceleration: Max. 10 m/s²
