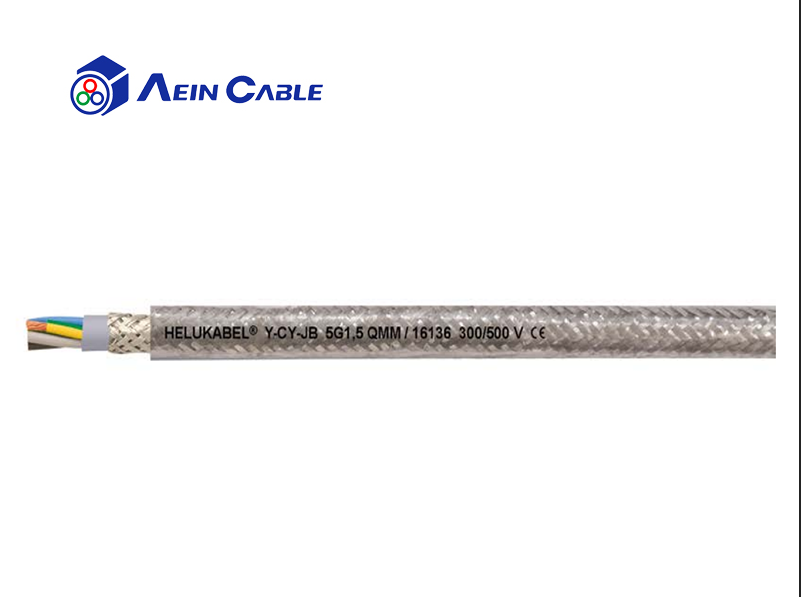

Location： Home > Product > By Alternative Brand > HELUKABEL > Alternative Helukabel Y-CY-JB / Y-CY-OB Oil Resistant Screened Cable

Product introduction

01 Product application
- - Used for flexible applications involving medium mechanical stress with free movement, without tensile stress and without forced motion control in dry rooms, however, not suitable for outdoor use. Used as a connection and control cable in measurement and control technology, in machine and machine tool construction, in conveyers and production lines, in computers, as well as signal cables in electronics. Due to the high screening density, interference-free transmission of signals or pulses is ensured. The PVC inner sheath increases the mechanical load capacity of the cable; the transparent PVC outer sheath makes the tinned copper braid optically effective. EMC = Electromagnetic Compatibility; in order to optimise EMC properties, we recommend a double-sided and all-round large contact area of the copper braiding.
02 Product characteristics • largely resistant to: oil, for details, see "Technical Information" • The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers
03 Technical certification
• flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332- 1-2 / IEC 60332-1-2

Product structure

	Conductor	Copper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5
	Conductor insulation	Special-PVC
	Identification	Core identification acc. to JB/OB colour code, colour coded
	Protective conductor	starting with 3 cores, G = with protective conductor GN-YE, in the outer layer, x = without protective conductor (OZ)
	Stranding	Cores stranded in layers with optimal lay lengths
	Screen	braided screen of tinned copper, approx. coverage 85%
	Inner sheath	PVC acc. to DIN VDE 0207-363-4-1 / DIN EN 50363-4-1 (compound type TM2)
	Outer jacket	PVC acc. to DIN VDE 0207-363-4-1 / DIN EN 50363-4-1 (compound type TM2)
	Jacket color	Transparent
	Length marking	in meters
