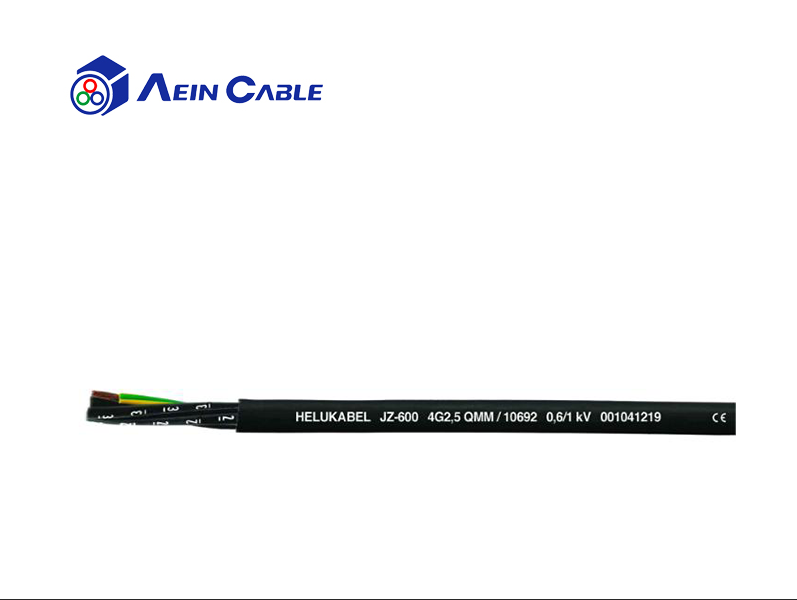

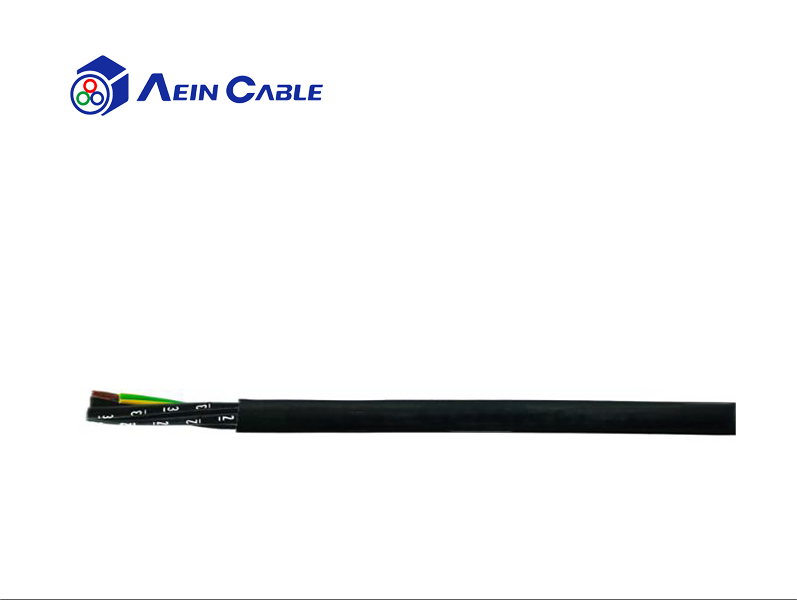

Location： Home > Product > By Alternative Brand > HELUKABEL > Alternative Helukabel JZ-600 Flexible Number Coded Cable

Product introduction

01 Product application
- - Connecting and control cable in tool machinery, conveyor belts and production lines, for plant installations, air conditioning and in steel production plants and rolling mills. Suitable for installation for flexible use for medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms as well as outside (fixed installation). Is not suitable to be used as direct burial (suitable from an outer diameter of 18,0 mm for direct burial) or as underwater cable. The black, special PVC outer sheath is resistant to the ultra violet radiation. Mainly used in South-European, Eastern and Arabian countries.

    CE = Product conforms with Low-Voltage Directive 2014/35/EU.
02 Product characteristics •UV resistant •Flame retardant DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2 •Oil resistance conform to Oil resistant acc. to DIN EN 60811-404 •Strong tolerance to oils, coolants and lubricants
03 Technical certification
•Conform to DIN VDE 0482-332-1-2 / DIN EN 60332- 1-2 / IEC 60332-1-2

•Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure

	Conductor	Copper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5
	Conductor insulation	PVC acc. to DIN VDE 0207-363-3 / DIN EN 50363-3 (compound type TI2)
	Identification	Core identification acc. to DIN VDE 0293-334, black cores with consecutive labeling in white digits
	Stranding	Cores stranded in layers with optimal lay lengths
	Outer jacket	PVC acc. to DIN VDE 0207-363-4-1 / DIN EN 50363-4-1 (compound type TM2)
	Jacket color	Black (RAL 9005)
	Length marking	in meters
