Spot stock

Min. bend radius, e-chain® (factor)

6.8 x d

Min. bend radius, e-chain®

1.9 inch (47.6 mm)

Min. bend radius, flexible (factor)

5.0 x d

Min. bend radius, flexible

1.4 inch (35.0 mm)

Min. bend radius, fixed (factor)

4.0 x d

Min. bend radius, fixed

1.1 inch (28.0 mm)

Temperature, e-chain® min.

41 °F (5 °C)

Temperature, e-chain® max.

158 °F (70 °C)

Temperature, flexible

+23 °F to +158 °F (-5°C to +70°C)

Temperature, fixed

+5 °F to +158 °F (-15 °C to +70 °C) (following DIN EN 50305)

v max., unsupported

33 ft/s (10 m/s)

v max. gliding

16 ft/s (5 m/s)

a. max.

262.5 ft/s² (80 m/s²)

Length of travel

Travels up to 328 ft (100 m)

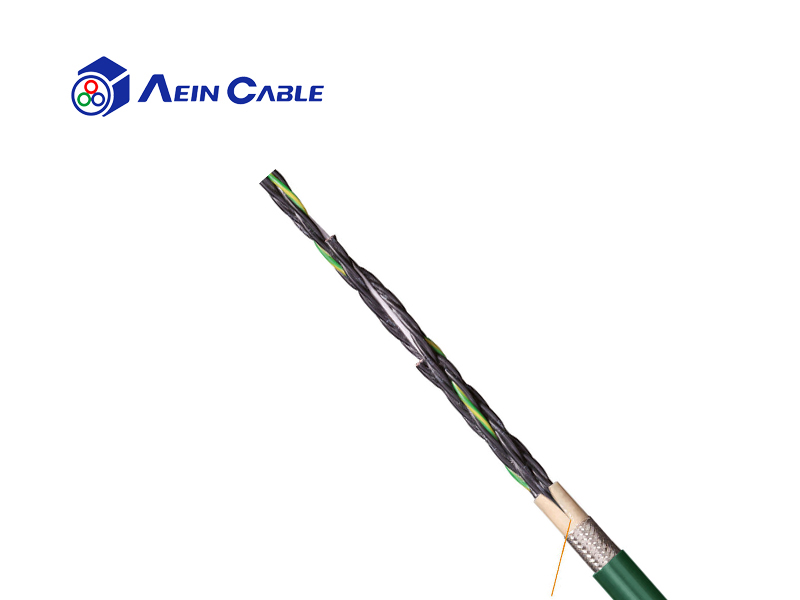

Conductor

Fine-wire stranded conductor consisting of bare copper wires (according to DIN EN 60228)

Conductor insulation

Mechanically high-quality TPE mixture

Conductor construction

Conductors stranded in short pitch in one position

Conductor identification

Cores black with white numerals, one core green-yellow

Inner jacket

PVC mixture suited to the requirements in e-chains®

Overall shield

Extremely bending-resistant braiding made of tinned copper wires. Coverage approx. 70% linear, approx. 90% optical.

Unshielded

No

Outer jacket

Low-adhesion, oil-resistant mixture on the basis of PVC, adapted to suit the requirements in e-chains® (following DIN EN50363-4-1)

Jacket color

Moss green (similar to RAL 6005)

CFRIP®

Quickly stripping: CFRIP® tear strip at inner jacket
