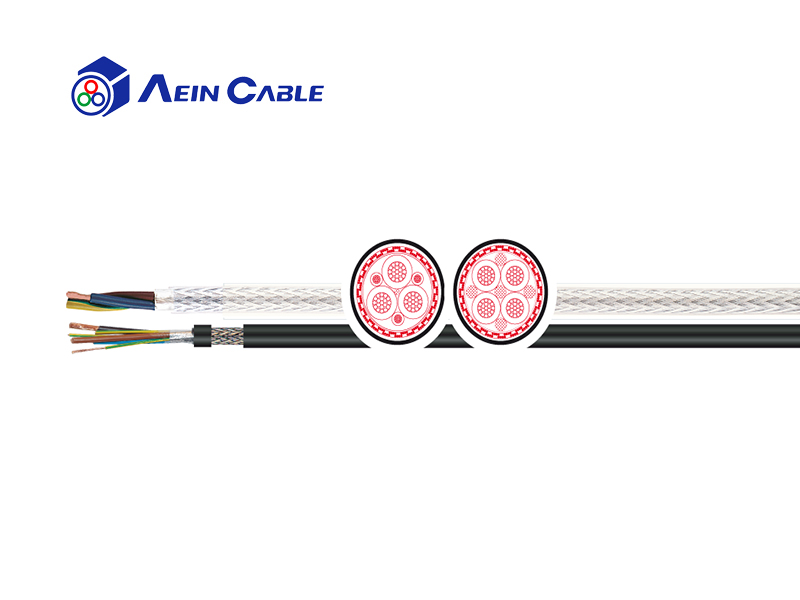

Conductor material:
|
Bare copper strand
|
|
Conductor class:
|
Acc. to IEC 60228 cl. 5
|
|
Core insulation:
|
PE
|
|
Core identification:
|
Acc. to DIN VDE 0293-308 coloured cores with GNYE
|
|
Stranding:
|
Stranded in layers
|
|
Shield3:
|
Alu-lamin. polyester foil, metal side outside, cover. 100% under copper braid tinned
|
|
Outer sheath:
|
PVC
|
|
Sheath colour:
|
Transparent, K-version: black
|
|
Rated voltage:
|
Uo/U 0,6/1 kV - highest permissible operating voltage Single phase and three-phase: 700/1200 V, DC operation: 900/1800 V
|
|
Testing voltage:
|
4 kV
|
|
Conductor resistance:
|
Acc. to IEC 60228 cl. 5
|
|
Insulation resistance:
|
Min. 20 MΩ x km
|
|
Current-carrying-capacity:
|
Look at the table on the right side
|
|
Capacity:
|
Look at the table on the right side
|
|
Min. bending radius fixed:
|
Up to 12 mm Ø: 5 x d; up to 20 mm Ø: 7,5 x d; > 20 mm Ø: 10 x d
|
|
Min. bending radius moved:
|
Up to 12 mm Ø: 10 x d; up to 20 mm Ø: 15 x d; > 20 mm Ø: 20 x d
|
|
Operat. temp. fixed min/max:
|
-40 °C / +80 °C
|
|
Operat. temp. moved min/max:
|
- 5 °C / +70 °C
|
|
Temp. at conductor:
|
+70 °C in operation; +160 °C in case of short-circuit
|
|
Burning behavior:
|
Self-extinguishing & flame-retardant acc.to IEC 60332-1
|
