Spot stock

Min. bend radius, e-chain® (factor)

7.5 x d

Min. bend radius, e-chain®

2.7 inch (67.5 mm)

Min. bend radius, flexible (factor)

6.0 x d

Min. bend radius, flexible

2.1 inch (54.0 mm)

Min. bend radius, fixed (factor)

4.0 x d

Min. bend radius, fixed

1.4 inch (36.0 mm)

Temperature, e-chain® min.

-13 °F (-25 °C)

Temperature, e-chain® max.

176 °F (80 °C)

Temperature, flexible

-40 °F to +176 °F (-20 °C to +80 °C)

Temperature, fixed

-58°F to +176°F (-50°C to +80°C)

v max., unsupported

33 ft/s (10 m/s)

v max. gliding

16 ft/s (5 m/s)

a. max.

262.5 ft/s² (80 m/s²)

Length of travel

Travels up to 328 ft (100 m)

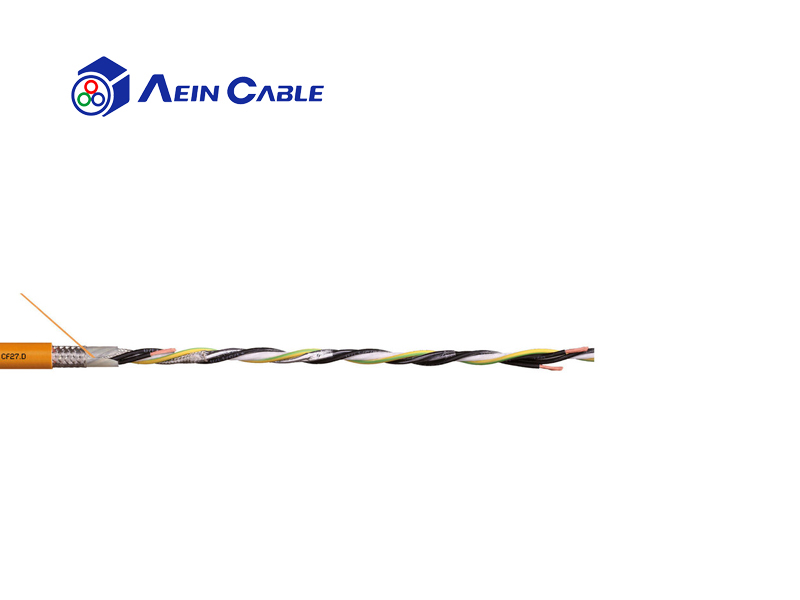

Conductor

Fine-wire stranded conductor in especially bending-resistant version consisting of bare copper wires (according to DIN EN 60228)

Conductor insulation

Mechanically high-quality, especially low-capacitance TPE mixture

Conductor construction

Power cores with control pair elements stranded with elements for high tensile stresses

Conductor identification

Energy conductor: Cores black with white numerals, one core green-yellow.
1.Core: U / L1 / C / L+
2.Core: V / L2
3.Core: W / L3 / D / L-

Element shield

Extremely bending-resistant, tinned copper cover.

Inner jacket

TPE mixture suited to the requirements in e-chains®

Overall shield

Extremely bending-resistant braiding made of tinned copper wires. Coverage approx. 70% linear, approx. 90% optical.

Unshielded

No

Outer jacket

Low adhesion mixture on the basis of PUR, adapted to suit the requirements in e-chains® (According to DIN EN 50363-10-2)

Jacket color

Pastel orange (similar to RAL 2003)

CFRIP®

Quickly stripping: CFRIP® tear strip at inner jacket
