Conductor material:
|
Bare copper strand
|
|
Conductor class:
|
Acc. to DIN VDE 0295 class 5 resp. IEC 60228 class 5
|
|
Core insulation:
|
0,75 mm²: PVC; 0,34 mm²: Foam-Skin PP
|
|
Core identification:
|
0,75 mm²: BK with WH numerals 1-27 and GNYE, 0,34 mm²: WH-BU, WH-OR, WH-GN, WH-BN
|
|
Stranding:
|
0,34 mm²: 2 cores twisted to a pair with fillers
|
|
Shield:
|
0,34 mm²: plastic clad aluminium foil with subjacent drain wire
|
|

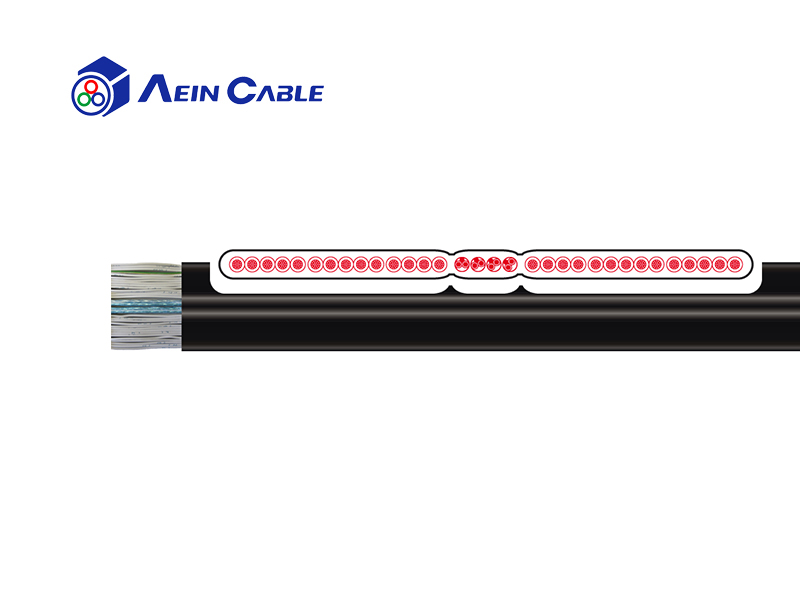

Overall stranding:
|
Parallel side by side: 14 cores 0,75 mm² (no. 1-14) - 4 shielded pairs 0,34 mm² (WH-BU, WH-OR, WH-GN, WH-BN) - 14 cores 0,75 mm² (no. 15-24, GNYE, no. 25-27)
|
|
Outer sheath:
|
PVC
|
|
Sheath colour:
|
Black
|
|
Rated voltage:
|
Uo/U: 300/500V
|
|
Testing voltage:
|
0,75 mm²: 2 kV; 0,34 mm²: c/c 1,5 kV, c/s 1 kV
|
|
Conductor resistance:
|
0,75 mm²: 26 Ω / km; 0,34 mm²: 54,4 Ω / km
|
|
Current-carrying-capacity:
|
Acc. to DIN VDE 0298 part 4
|
|
Characteristic impedance:
|
Pairs: 0,34 mm²: 110 Ω ± 10 %
|
|
Min. bending radius moved:
|
150 mm
|
|
Operat. temp. moved min/max:
|
-15 °C / +70°C
|
|
Burning behavior:
|
Flame retardant and self-extinguishing acc. to IEC 60332-1-2
|
|
Suspension height:
|
Max. 45 m
|
|
Standard:
|
Acc. to EN 50214
|
|
Speed:
|
Max. 6,0 m / s
|
