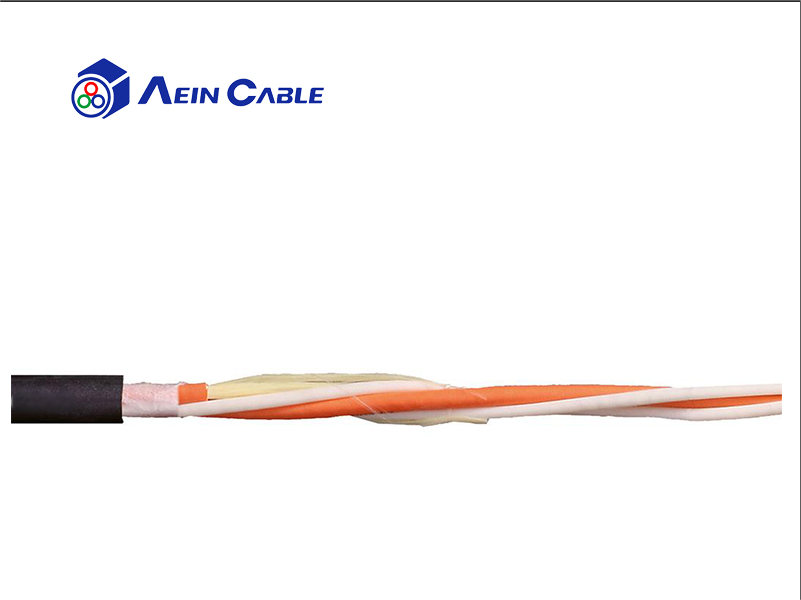

Location： Home > Product > By Alternative Brand > IGUS CABLE > Alternative IGUS Fiber Optic Cable CFLG-LB

Product introduction

01 Product application
- - For heaviest duty applications with 5-7.5 xd

    Maximum EMC protection, with high transmission qualities

    Almost unlimited resistance to oil

    Indoor and outdoor applications

    Unsupported travel distances and up to 492.13 ft (150 m) for gliding applications (horizontal + vertical)

    Offshore, ships, storage and retrieval equipment, machining units/packaging machines, quick handling, semiconductor insertion, refrigeration sector
02 Product characteristics •Conform to RoHS standard
•UV resistance
•Flame retardant acc. to CSA C22.2 No.2556-15 FT2
•Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
•Strong tolerance to oils, coolants and lubricants
03 Technical certification
•Conform to UL&CUL standard UL758,CSA C22.2 No. 210

•Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure

	Min. bend radius, e-chain® (factor)	4.0 x d
	Min. bend radius, e-chain®	1.7 inch (42.5 mm)
	Min. bend radius, flexible (factor)	3.0 x d
	Min. bend radius, flexible	1.3 inch (34.0 mm)
	Min. bend radius, fixed (factor)	5.0 x d
	Min. bend radius, fixed	1.0 inch (25.5 mm)
	Temperature, e-chain® min.	-31°F（-35°C）
	Temperature, e-chain® max.	176 °F (80 °C)
	Temperature, flexible	-40 °F to +176 °F (-20°C to +80°C)
	Temperature, fixed	-58°F to +176°F (-50°C to +80°C)
	v max. unsupported	33 ft/s (10 m/s)
	a max.	65.6 ft/s² (20 m/s²)
	Length of travel	Unsupported up to 328 ft (100 m)

	Conductor	50/125 μm, 62.5/125 μm special fixed wire elements with aramide strain relief.
	Unshielded	No
	Outer jacket	Low-adhesion mixture on the basis of TPE, especially abrasionresistant and highly flexible, adapted to suit the requirements in e-chains®.
	Over shield	Extremely bending-resistant aramid braid for torsion protection.
	Jacket color	Jet black (similar to RAL 9005)
